I-Static Mound Rack Mount Static Var generator

Ufuna i-Static Mound ethembekile ye-Static Static Var generator? UGeya unikeza izixazululo eziphezulu zokusebenza ezenzelwe ukuthuthukisa ikhwalithi yamandla ngokunemba nokusebenza kahle. Ifektri yethu eChina ihlinzeka ngemikhiqizo ephezulu ye-tier, iqinisekisa imiphumela efanelekile yezidingo zakho zokukhiqiza. Xhumana nathi namuhla ukuthola eminye imininingwane futhi uthole isivumelwano esihle kakhulu ngqo kusuka kumthombo!

Thumela Uphenyo

Incazelo Yomkhiqizo

Ukuchazwa Komkhiqizo:

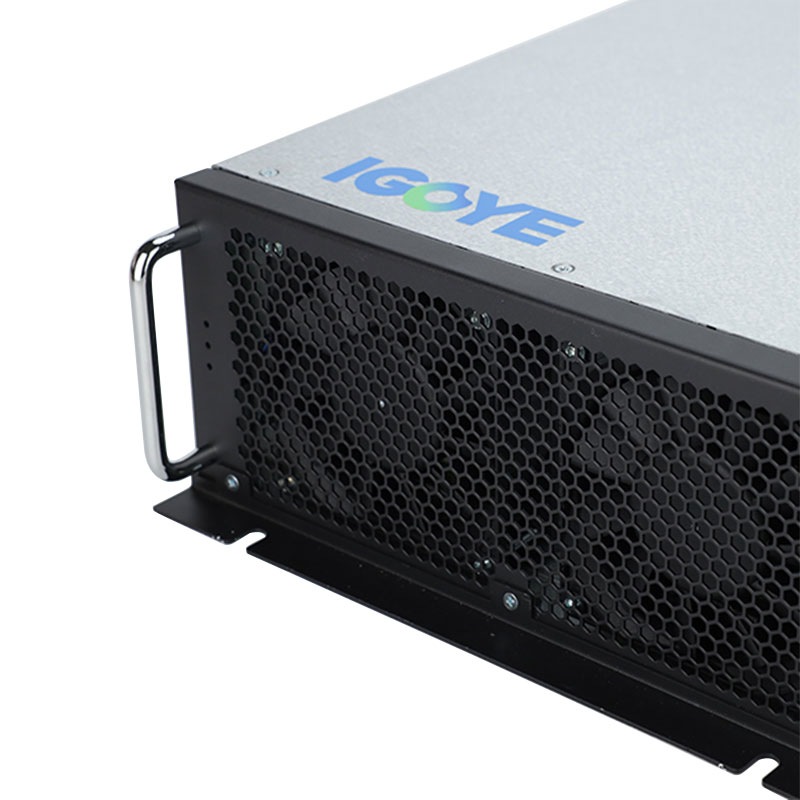

I-Static Mound Rack Mount Static Grate Generator (SVG) inikeza isinxephezelo samandla asebenzayo ashukumisayo wezinhlelo zikagesi ezi-220V. Isebenzisa ukulawula kwe-DSP + CPLD, le SVG ihambisa isinxephezelo esinembile nesiphendulayo, nesikhathi esigcwele sokuphendula esingaphansi kwama-10ms. Idizayini yalo evumelanayo ivumela ukufakwa okulula nokulungiswa ngaphakathi kwama-racks ajwayelekile ayi-19-intshi. Ukucushwa kweNtaba yeRack Mount kuhlinzeka ngesisombululo esinamandla nesikhala sokuphatha amandla asebenzayo kuzinhlelo zokusebenza zesigaba esisodwa. Ngomthamo olinganiselwe we-5kvar, le ntaba yesigaba esisodwa se-SVG yesigaba esisodwa ngempumelelo yamandla asebenzayo, ethuthukisa isici samandla kanye nokuqinisekisa ukuqina kohlelo.

Incazelo Model:

Uhlobo lwemoto	Into exabanakayo	0.22	5K	/	2L	R
Ikhodi yebhizinisi	I-Static Var Generator	Ileveli ye-Voltage I-0.22: 220V	Umthamo olinganiselwe (kvar) 5 Quarter		2l: Isigaba esisodwa	R: I-Rack Mount

Izici:

● Sebenzisa i-DSP + CPLD Yonke i-Digital Control Core, ubuchwepheshe be-topology ezintathu, isu eliphakeme lokuthola amandla i-algorithm ne-PWM yokulawula i-PWM ukufezekisa isinxephezelo esinamandla nesinembile samandla asebenzayo.
● Yamukela ukwakheka okulungiselelwe, okusiza ukuxhumana okuhambisanayo kwamamojula amaningi, kuthatha isikhala esincane futhi kulula ukukugcina.
● Idizayini yokwakheka kwe-Independent Air Ducts kanye nama-WETE WAREHOSEes aqinisekisa ukusebenza okuzinzile kwemishini.
● Yenza isinxephezelo esiguquguqukayo esigcwele samandla asebenzayo asebenzayo namandla okusebenza kabusha we-capacive, futhi axazulule inkinga engalingani emithathu ngasikhathi sinye.
● Ijubane lokuphendula elinamandla kulo mthwalo lisezingeni lama-millisecond, elingafinyelela isinxephezelo esinamandla nesinembile samandla asebenzayo wemithwalo yomthelela.

Izicelo:

Ama-generator we-Star-Phase Mound Static Vargerator alungele izinhlelo ezahlukahlukene zokusebenza ezidinga ukulawulwa kwamandla okusebenzayo kuzinhlelo ze-220V:

● Ukusatshalaliswa kwamandla okuhlala:Ukwenza ngcono amandla ikhwalithi futhi kunciphisa ukuguquguquka kwamandla okushintshashintsha kwamathampu ezinhlelweni zokuhlala zodwanga.
● Ukuphathwa kwamandla amabhizinisi amancane:Ukuthuthukisa isici samandla nokwenza kahle amandla okusebenza kwamandla kuzilungiselelo zentengiso zesigaba esisodwa.
● Ukuxhaswa Kwemishini Yesigaba Esingashadile:Ukunikeza isinxephezelo samandla okusebenza okusebenzayo kwemishini eyodwa ebucayi yesigaba esisodwa.
● Ukuhlanganiswa kwamandla okuvuselelekayo (isigaba esisodwa):Ukusekela ukuqina kwegridi kanye nekhwalithi yamandla ezinhlelweni zesigaba esisodwa ezihlanganisa imithombo yamandla evuselelekayo.

Ama-Generator we-Lingle-Phase Stack Mount Grain anikela ngesisombululo esihlanganisiwe nesinokwethenjelwa sokuphatha amandla asebenzayo kanye nokwenza ngcono amandla wekhwalithi kagesi esihlaselayo.

Single-phase Rack Mount Static Var Generator

Amapharamitha Ezobuchwepheshe:

	I-220V Series	I-380V Series		I-500V Series		I-690V Series
Ukuphakama phezu kolwandle	<2000m, ngenhla kuka-2000m, okukhiqizayo ngokusho kwe-GB / T3859.2
Izinga lokushisa elikhona	-20 ~ + 50 ℃
Umswakama ohlobene	≤90%, Akukho ukubuyiselwa emuva ebusweni lapho izinga lokushisa eliphansi lanyanga zonke lingu-25 ℃
Izinga lokungcola	I-Level III ngezansi
Voltage osebenzayo	I-AC220V ± 20%	AC380V ± 20%		AC500V ± 20%		I-AC690V ± 20%
Imvamisa yokusebenza	I-50hz ± 5%
Kulinganiselwe Isinxephezelo Senkokhelo	I-5kvar	15 / 35/15 / 75 / 100kvar		I-90kvar		I-120kvar
Isakhiwo segridi	L / n	I-3P3w / 3P4W
Inani lamayunithi axhumeke ngokufana	-Nethemba
Ukusebenza kahle komshini okuphelele	≥97%
Imvamisa ekwi-off	32Khz	I-16KHZ		12.8kHz		12.8kHz
Ukukhetha umsebenzi	Amandla asebenzayo	I-Reactive PO Wer, Reactive PO Wer + Mibalance
Izinga Lokulungiswa Kwamandla Amandla	≥99%	> 95%
Isikhathi sokuphendula esigcwele	<10ms
Isixokoxoko	≤60db	≤60db		≤65DB		≤65DB
Indlela yokulawula	2-Way Rs485 isikhombimsebenzisi (isekela i-GPRS / WIFI)
Ukuvikela	Ukulayisha ngokweqile, isoftware / ye-Hardware ephezulu kakhulu, i-grid screvoltage kanye nokuvinjwa kwamandla, ukwehluleka kwamandla, ukuvikelwa okuphezulu, ukuvikela imvamisa, njll.		Ukulayisha ngokweqile, isoftware / i-Overculvent Overcursent, i-Grid Overvoltage kanye ne-Undervoltage, I-Grid Voltage Imbalince, Amandla Amandla, Ukuhlukumezeka Kwamandla, Ukuvama imvamisa, Ukuvikelwa Kwesilinganiso, njll.
Indlela yokufaka	Rack / kufakwe odongeni				Isikali
Umugqa ongenayo	Emuva okungenayo (uhlobo lwe-rack), okungenayo okungenayo (okufakwe odongeni)				Emuva umugqa ongenayo
Ileveli yokuvikela	I-IP20

Model & Procation:

Single-phase Rack Mount Static Var Generator

Amamodeli
Inombolo yemodeli	Umthamo wesinxephezelo (kvar)	I-System Voltage (V)	Ubukhulu (D * w * h)	Indlela yokupholisa
Gy svg-0.22-5k / 2L-R / W	5	220	220 * 330 * 160mm	Ukuphoqelelwa komoya komoya
Gy svg-0.4-15k / 4L-R / W	15	380 ± 20%	460 * 490 * 89mm
Gy svg-0.4-35k / 4L-R / W	35	380 ± 20%	460 * 490 * 89mm
Gy svg-0.4-50k / 4L-R / W	50	380 ± 20%	500 * 510 * 190mm
Gy svg-0.4-75k / 4L-R / W	75	380 ± 20%	500 * 550 * 240mm
Gy svg-0.4-100k / 4L-R / W	100	380 ± 20%	500 * 550 * 240mm
Gy svg-0.5-90k / 4L-R / W	90	500 ± 20%	495 * 675 * 275mm
Gy SVG-0.69-120K / 4L-R / W	120	I-690 ± 20%	495 * 675 * 275mm
