Imikhiqizo

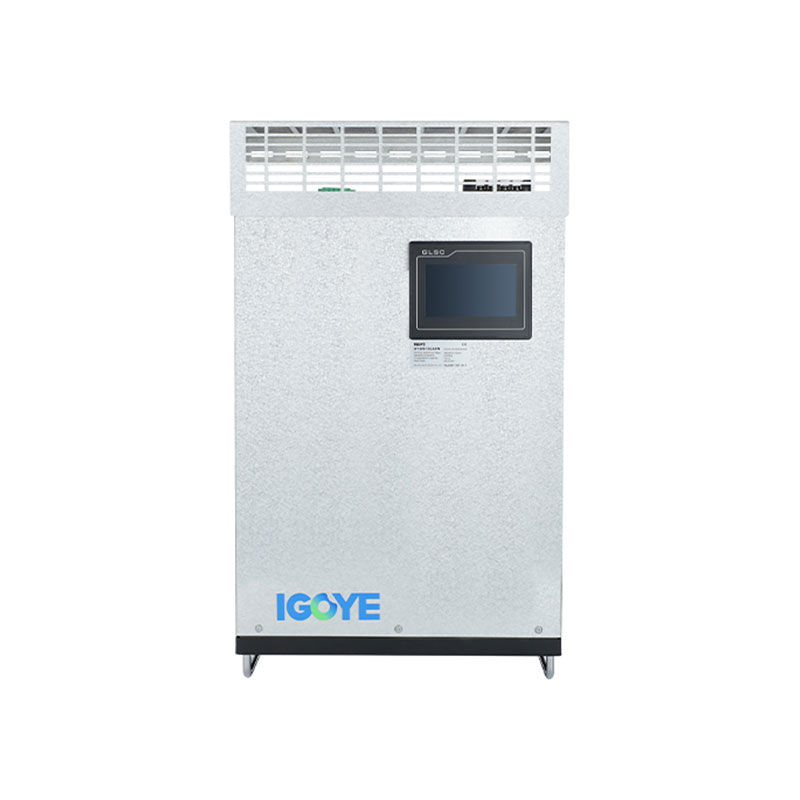

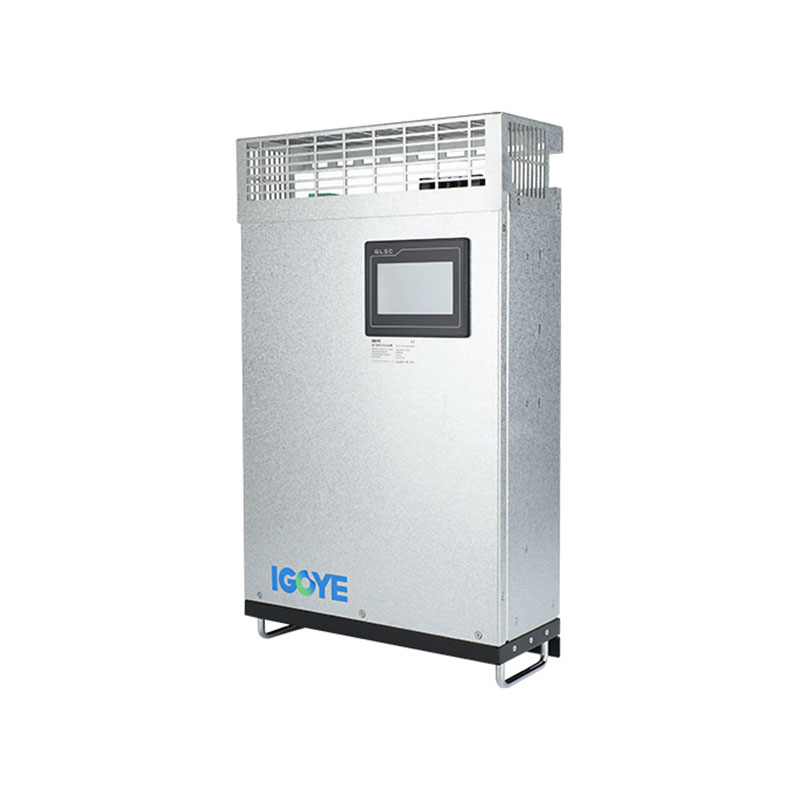

I-220V rack Mount strator generator
I-Termator ye-220V rack Mount Static Var Generator, ekhiqizwe eChina, i-Entered ukuletha ukulungiswa kwamandla amakhulu amandla kanye nokuqina kwamandla kagesi. Njengesixazululo esithembekile sezicelo eziningi zezimboni, le generator iqinisekisa ukusebenza kahle nokusebenza kwamandla. Finyelela namhlanje ukuze uhlole ukuthi imikhiqizo yethu ingenziwa kanjani ngokwezifiso ukulingana nezidingo zakho, futhi uthole ukuthi kungani ubuchwepheshe bethu bokukhiqiza baseChina busibeka eceleni embonini.

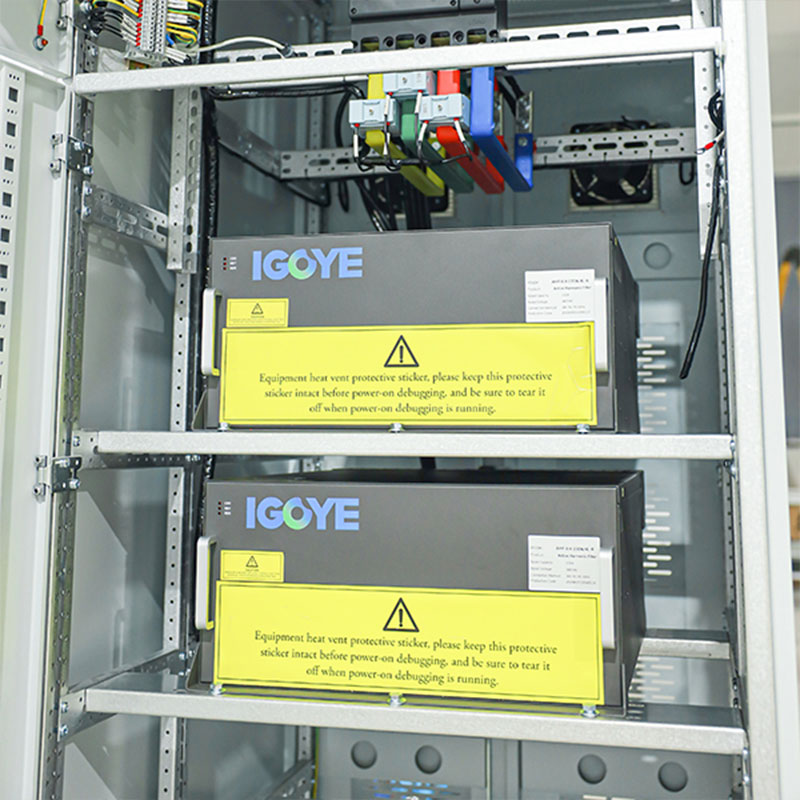

I-Ternator ye-220V rack Mount Static Var Generator (SVG) inikezela ngesinxephezelo samandla asebenzayo ashukumisayo wezinhlelo zikagesi kagesi ngo-2200. Usebenzisa ukulawulwa kwedijithali kwe-DSP + CPLD kanye ne-topology enezinga ezintathu, le SVG ihambisa isinxephezelo esisheshayo nesinembile nesikhathi sokuphendula esingaphansi kwama-10ms. I-Rack Mount Design ivumela ukufakwa okulula nokulungiswa ngaphakathi kwama-racks ajwayelekile we-19-intshi Server. Le SVG iyatholakala ngamakhono ahlukahlukene (5kvar, 8kvar, 19kvar, 27kvar, 41kvar, ne-55kvar) ukuze ivumelane nezidingo zohlelo lokusebenza.
Incazelo Model:
| Uhlobo lwemoto | Into exabanakayo | 0.22 | I-55k | / | 4L | R |
| Ikhodi yebhizinisi | I-Static Var generator | Ileveli ye-Voltage I-0.22: 220V |
I-Rated Peract (Kvar) 5/8/7/7/7/7/55kvar | 2l: Isigaba esisodwa I-3L: Isigaba esithathu-sigaba ezintathu I-4L: Isigaba Esithathu-Izintambo ezine |
R: I-Rack Mount |
Izici:
● Sebenzisa i-DSP + CPLD Yonke i-Digital Control Core, ubuchwepheshe be-topology ezintathu, isu eliphakeme lokuthola amandla i-algorithm ne-PWM yokulawula i-PWM ukufezekisa isinxephezelo esinamandla nesinembile samandla asebenzayo.
● Yamukela ukwakheka okulungiselelwe, okusiza ukuxhumana okuhambisanayo kwamamojula amaningi, kuthatha isikhala esincane futhi kulula ukukugcina.
● Idizayini yokwakheka kwe-Independent Air Ducts kanye nama-WETE WAREHOSEes aqinisekisa ukusebenza okuzinzile kwemishini.
● Yenza isinxephezelo esiguquguqukayo esigcwele samandla asebenzayo asebenzayo namandla okusebenza kabusha we-capacive, futhi axazulule inkinga engalingani emithathu ngasikhathi sinye.
● Ijubane lokuphendula elinamandla kulo mthwalo lisezingeni lama-millisecond, elingafinyelela isinxephezelo esinamandla nesinembile samandla asebenzayo wemithwalo yomthelela.
Izicelo:
I-220V rack Mount Mark Generator ilungele izinhlelo zokusebenza ezahlukahlukene ezidinga ukulawulwa kwamandla okusebenzayo ku-120V kagesi kagesi:
● Ukulungiswa Komsebenzi Wamandla Wokuhlala:Ukwenza ngcono amandla Polictor emakhaya, kunciphisa izikweletu zikagesi kanye nokwenza ngcono umthamo wezinhlelo ezikhona zikagesi.
● Ukulawulwa kwemoto eyodwa -Ukunxephezela ukufunwa kwamandla okusebenzayo kusuka kuma-motor wesigaba esisodwa, okwandisa ukusebenza kahle kanye nokunciphisa ukusetshenziswa kwamandla.
● Ukuphathwa kwamandla amabhizinisi amancane:Ukuhlinzeka ngamandla athile aqinile kanye nekhwalithi yamandla athuthukisiwe yamabhizinisi amancane asebenza emandleni esigabeni esisodwa.
● Izinhlelo zamandla avuselelekayo (isigaba esisodwa):Ukusekela ukuhlanganiswa kwemithombo yamandla evuselelekayo yokuvuselela amandla, ukugcina ukuqina kwegridi kanye nekhwalithi yamandla.
I-220V rack Mount Mark Generator Vargerator inikezela ngesixazululo esihlangene nesisebenzayo sokwenza kahle ikhwalithi yamandla kanye nokusebenza kahle ezinhlelweni zikagesi ezi-220V.
Amapharamitha Ezobuchwepheshe:
| I-220V Series | I-380V Series | I-500V Series | I-690V Series | |||
| Ukuphakama phezu kolwandle | <2000m, ngenhla kuka-2000m, okukhiqizayo ngokusho kwe-GB / T3859.2 | |||||
| Izinga lokushisa elikhona | -20 ~ + 50 ℃ | |||||
| Umswakama ohlobene | ≤90%, Akukho ukubuyiselwa emuva ebusweni lapho izinga lokushisa eliphansi lanyanga zonke lingu-25 ℃ | |||||
| Izinga lokungcola | I-Level III ngezansi | |||||
| Voltage osebenzayo | I-AC220V ± 20% | AC380V ± 20% | AC500V ± 20% | I-AC690V ± 20% | ||
| Imvamisa yokusebenza | I-50hz ± 5% | |||||
| Kulinganiselwe Isinxephezelo Senkokhelo | I-5kvar | 15 / 35/15 / 75 / 100kvar | I-90kvar | I-120kvar | ||
| Isakhiwo segridi | L / n | I-3P3w / 3P4W | ||||
| Inani lamayunithi axhumeke ngokufana | -Nethemba | |||||
| Ukusebenza kahle komshini okuphelele | ≥97% | |||||
| Imvamisa ekwi-off | 32Khz | I-16KHZ | 12.8kHz | 12.8kHz | ||
| Ukukhetha umsebenzi | Amandla asebenzayo | I-Reactive PO Wer, Reactive PO Wer + Mibalance | ||||
| Izinga Lokulungiswa Kwamandla Amandla | ≥99% | > 95% | ||||
| Isikhathi sokuphendula esigcwele | <10ms | |||||
| Isixokoxoko | ≤60db | ≤60db | ≤65DB | ≤65DB | ||
| Indlela yokulawula | 2-Way Rs485 isikhombimsebenzisi (isekela i-GPRS / WIFI) | |||||
| Ukuvikela | Ukulayisha ngokweqile, isoftware / ye-Hardware ephezulu kakhulu, i-grid screvoltage kanye nokuvinjwa kwamandla, ukwehluleka kwamandla, ukuvikelwa okuphezulu, ukuvikela imvamisa, njll. | Ukulayisha ngokweqile, isoftware / i-Overculvent Overcursent, i-Grid Overvoltage kanye ne-Undervoltage, I-Grid Voltage Imbalince, Amandla Amandla, Ukuhlukumezeka Kwamandla, Ukuvama imvamisa, Ukuvikelwa Kwesilinganiso, njll. | ||||
| Indlela yokufaka | Rack / kufakwe odongeni | Isikali | ||||
| Umugqa ongenayo | Emuva okungenayo (uhlobo lwe-rack), okungenayo okungenayo (okufakwe odongeni) | Emuva umugqa ongenayo | ||||
| Ileveli yokuvikela | I-IP20 | |||||
Model & Procation:
| Amamodeli | ||||
|---|---|---|---|---|
| Inombolo yemodeli | Umthamo wesinxephezelo (kvar) | I-System Voltage (V) | Ubukhulu (D * w * h) | Indlela yokupholisa |
| Gy svg-0.22-5k / 2L-R / W | 5 | 220 | 220 * 330 * 160mm | Ukuphoqelelwa komoya komoya |
| Gy svg-0.4-15k / 4L-R / W | 15 | 380 ± 20% | 460 * 490 * 89mm | |
| Gy svg-0.4-35k / 4L-R / W | 35 | 380 ± 20% | 460 * 490 * 89mm | |
| Gy svg-0.4-50k / 4L-R / W | 50 | 380 ± 20% | 500 * 510 * 190mm | |
| Gy svg-0.4-75k / 4L-R / W | 75 | 380 ± 20% | 500 * 550 * 240mm | |
| Gy svg-0.4-100k / 4L-R / W | 100 | 380 ± 20% | 500 * 550 * 240mm | |
| Gy svg-0.5-90k / 4L-R / W | 90 | 500 ± 20% | 495 * 675 * 275mm | |
| Gy SVG-0.69-120K / 4L-R / W | 120 | I-690 ± 20% | 495 * 675 * 275mm | |
