I-380V rack Mount strator generator

I-380V rack Mound Static Var Generator iyisisombululo esinamandla sokugcina ukuqina kwamandla kagesi kanye nokwenza ngcono amandla endabeni ezifunwa kakhulu. Uma ufuna ukusebenza okuthembekile kanye nokusebenza kahle, cela isilinganiso sanamuhla! Iqembu lethu lesazi sezelelesi selilungele ukuhlinzeka ngezixazululo ezihambelana nezezimali zokuhlangabezana nezidingo zakho ezithile. Ngobuchwepheshe bethu bokusika-onqenqemeni, ungathuthukisa ukusebenza kahle kwamandla futhi uqinisekise ikhwalithi yamandla angaguquki.

Thumela Uphenyo

Incazelo Yomkhiqizo

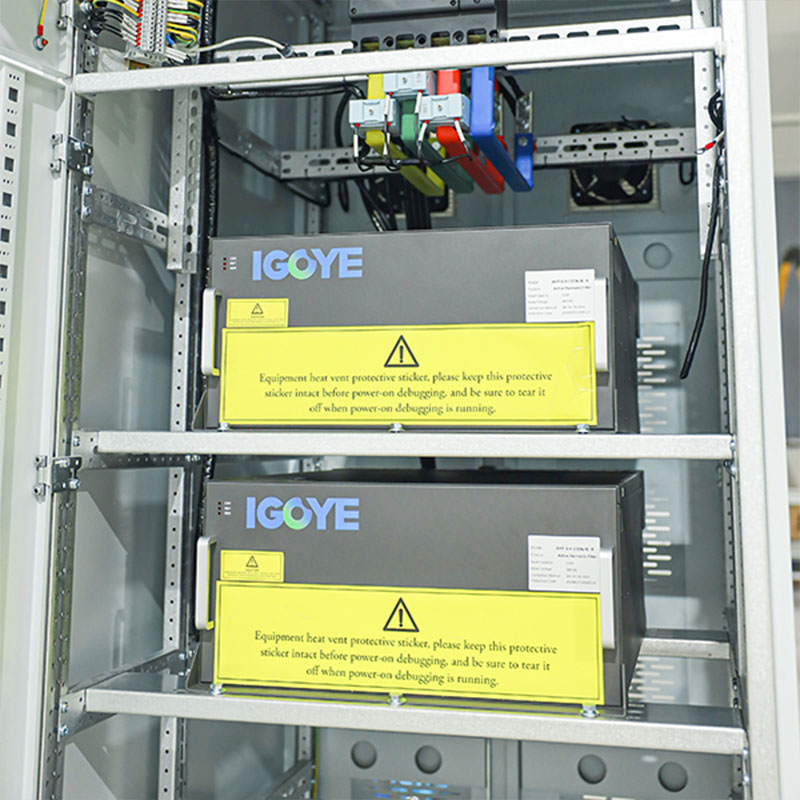

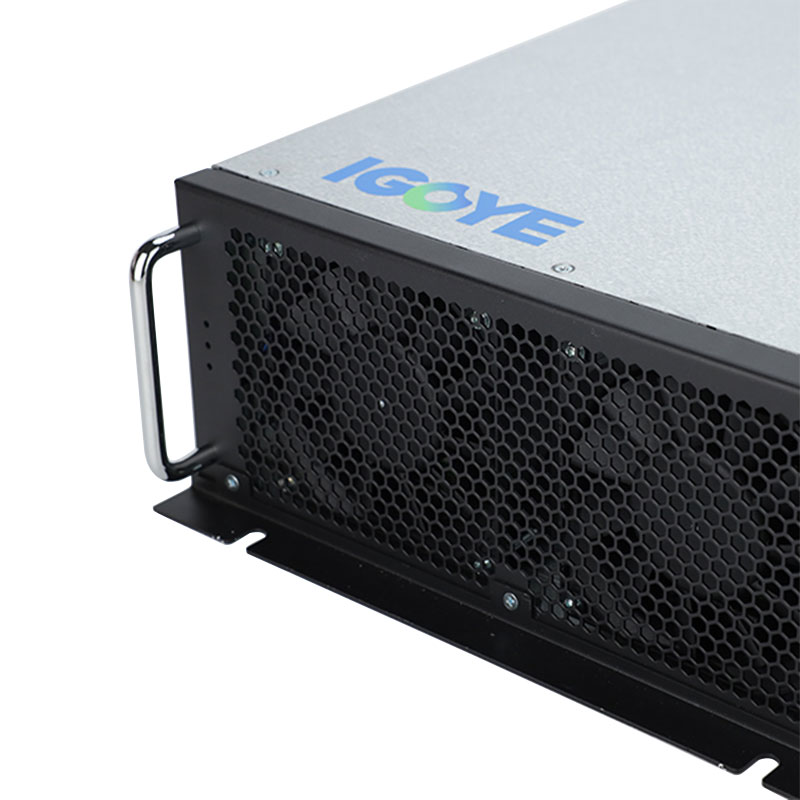

I-380V rack Mound Static Var Generator (SVG) inikeza amandla isinxephezelo samandla asebenzayo ashukumisayo wezinhlelo ezintathu zikagesi ezingama-380V. Le SvG isebenzisa ukulawula okuthuthukile kwe-DSP + CPLD kanye ne-topology enezinga ezintathu, ukuqinisekisa ukunxeshezelwa okuqondile nokuphendula ngesikhashana esigcwele sokuphendula ngaphansi kwayi-10ms. Idizayinelwe ukufakwa okulula kuma-racks ajwayelekile ayi-19-intshi, ukucushwa kweNtaba yeRack Mount kusindisa isikhala futhi kube lula ukulungiswa. Amakhono atholakalayo aqala kusuka ku-15kvar kuya ku-100kvar kuya ku-100kvar (15kvar, 35kvar, 50kvar, ama-75kvar, ne-100kvar), avumela uhlelo lokusebenza oluguquguqukayo kuzilungiselelo ezahlukahlukene zezimboni.

Incazelo Model:

Uhlobo lwemoto	Into exabanakayo	0.4	50k	/	4L	R
Ikhodi yebhizinisi	I-Static Var generator	Ileveli ye-Voltage 0.4: 380v ± 20%	Amandla alinganiselwe (kvar) 10/15 / 35/15 / 75 / 100kvar		I-3L: Isigaba esithathu-sigaba ezintathu I-4L: Isigaba Esithathu-Izintambo ezine	R: I-Rack Mount

Izici:

● Sebenzisa i-DSP + CPLD Yonke i-Digital Control Core, ubuchwepheshe be-topology ezintathu, isu eliphakeme lokuthola amandla i-algorithm ne-PWM yokulawula i-PWM ukufezekisa isinxephezelo esinamandla nesinembile samandla asebenzayo.
● Yamukela ukwakheka okulungiselelwe, okusiza ukuxhumana okuhambisanayo kwamamojula amaningi, kuthatha isikhala esincane futhi kulula ukukugcina.
● Idizayini yokwakheka kwe-Independent Air Ducts kanye nama-WETE WAREHOSEes aqinisekisa ukusebenza okuzinzile kwemishini.
● Yenza isinxephezelo esiguquguqukayo esigcwele samandla asebenzayo asebenzayo namandla okusebenza kabusha we-capacive, futhi axazulule inkinga engalingani emithathu ngasikhathi sinye.
● Ijubane lokuphendula elinamandla kulo mthwalo lisezingeni lama-millisecond, elingafinyelela isinxephezelo esinamandla nesinembile samandla asebenzayo wemithwalo yomthelela.

Izicelo:

Ama-Generator we-380V Mount Mark Generator alungele izinhlelo zokusebenza zezimboni ezifuna ukulawulwa kwamandla okusebenzayo ku-380V Systems:

● Ukulawulwa kwezimoto zezimboni (isigaba esithathu):Ukwenza ngcono ukusebenza kahle kanye ne-Power Factor yama-motors wezigaba ezintathu, ukunciphisa ukusetshenziswa kwamandla nezindleko zokusebenza.
● Ukulungiswa kwe-Power Factor (Izimboni):Ukulungisa i-Power Factor ezikhungweni zezimboni, ukunciphisa izindleko zikagesi kanye nokwenza ngcono umthamo wengqalasizinda kagesi ekhona.
● Ukuncishiswa kwe-hamonic (izinhlelo ezintathu zesigaba ezintathu):Ukunciphisa ukuhlanekekekekezeka kwe-harmonic ezinhlelweni zesigaba ezintathu, ukuvikela imishini ebucayi kanye nokwenza ngcono amandla.
● Ukuhlanganiswa kwamandla okuvuselelekayo (isigaba esithathu):Ukwenza lula ukuhlanganiswa okungenamthungo kwemithombo yamandla evuselelekayo yokuvuselela amandla, ukuqinisekisa ukuqina kwegridi kanye nokugcina ikhwalithi ephezulu yamandla.

I-380V rack Mount Mark Generator iletha isixazululo esinamandla nesisebenzayo sokwenza kahle ikhwalithi yamandla kanye nokusebenza kahle ezindaweni ezifunwa kwezimboni.

380V Rack Mount Static Var Generator

Amapharamitha Ezobuchwepheshe:

	I-220V Series	I-380V Series		I-500V Series		I-690V Series
Ukuphakama phezu kolwandle	<2000m, ngenhla kuka-2000m, okukhiqizayo ngokusho kwe-GB / T3859.2
Izinga lokushisa elikhona	-20 ~ + 50 ℃
Umswakama ohlobene	≤90%, Akukho ukubuyiselwa emuva ebusweni lapho izinga lokushisa eliphansi lanyanga zonke lingu-25 ℃
Izinga lokungcola	I-Level III ngezansi
Voltage osebenzayo	I-AC220V ± 20%	AC380V ± 20%		AC500V ± 20%		I-AC690V ± 20%
Imvamisa yokusebenza	I-50hz ± 5%
Kulinganiselwe Isinxephezelo Senkokhelo	I-5kvar	15 / 35/15 / 75 / 100kvar		I-90kvar		I-120kvar
Isakhiwo segridi	L / n	I-3P3w / 3P4W
Inani lamayunithi axhumeke ngokufana	-Nethemba
Ukusebenza kahle komshini okuphelele	≥97%
Imvamisa ekwi-off	32Khz	I-16KHZ		12.8kHz		12.8kHz
Ukukhetha umsebenzi	Amandla asebenzayo	I-Reactive PO Wer, Reactive PO Wer + Mibalance
Izinga Lokulungiswa Kwamandla Amandla	≥99%	> 95%
Isikhathi sokuphendula esigcwele	<10ms
Isixokoxoko	≤60db	≤60db		≤65DB		≤65DB
Indlela yokulawula	2-Way Rs485 isikhombimsebenzisi (isekela i-GPRS / WIFI)
Ukuvikela	Ukulayisha ngokweqile, isoftware / ye-Hardware ephezulu kakhulu, i-grid screvoltage kanye nokuvinjwa kwamandla, ukwehluleka kwamandla, ukuvikelwa okuphezulu, ukuvikela imvamisa, njll.		Ukulayisha ngokweqile, isoftware / i-Overculvent Overcursent, i-Grid Overvoltage kanye ne-Undervoltage, I-Grid Voltage Imbalince, Amandla Amandla, Ukuhlukumezeka Kwamandla, Ukuvama imvamisa, Ukuvikelwa Kwesilinganiso, njll.

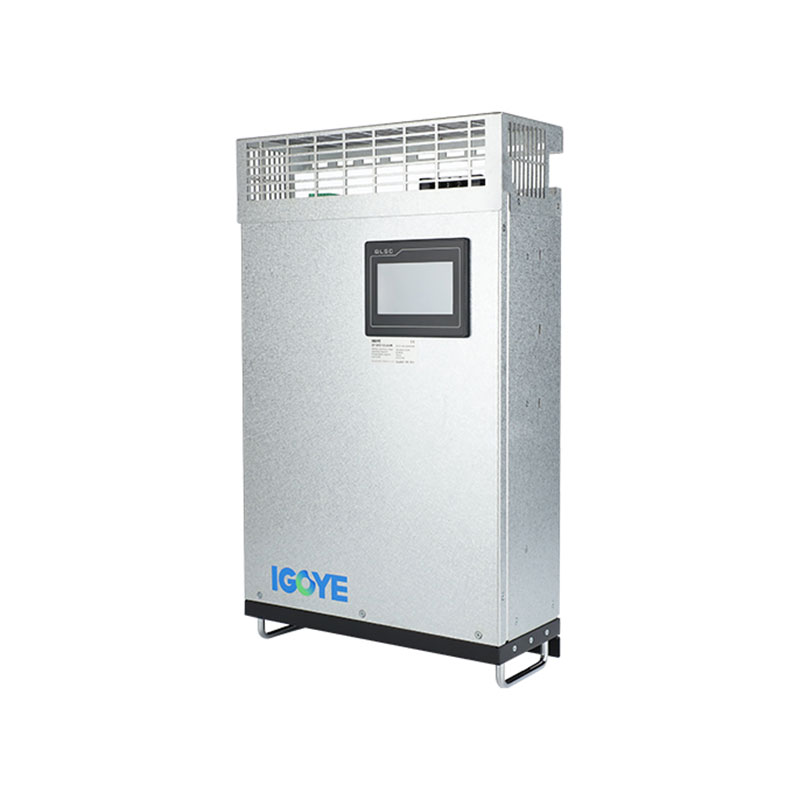

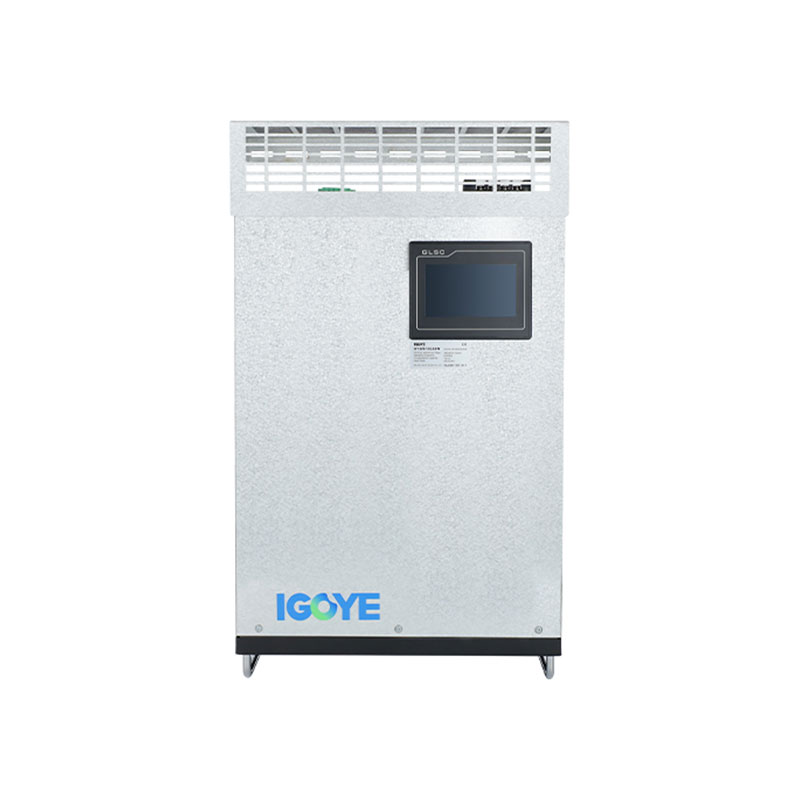

Indlela yokufaka	Rack / kufakwe odongeni				Isikali
Umugqa ongenayo	Emuva okungenayo (uhlobo lwe-rack), okungenayo okungenayo (okufakwe odongeni)				Emuva umugqa ongenayo
Ileveli yokuvikela	I-IP20

Model & Procation:

380V Rack Mount Static Var Generator

Amamodeli
Inombolo yemodeli	Umthamo wesinxephezelo (kvar)	I-System Voltage (V)	Ubukhulu (D * w * h)	Indlela yokupholisa
Gy svg-0.22-5k / 2L-R / W	5	220	220 * 330 * 160mm	Ukuphoqelelwa komoya komoya
Gy svg-0.4-15k / 4L-R / W	15	380 ± 20%	460 * 490 * 89mm
Gy svg-0.4-35k / 4L-R / W	35	380 ± 20%	460 * 490 * 89mm
Gy svg-0.4-50k / 4L-R / W	50	380 ± 20%	500 * 510 * 190mm
Gy svg-0.4-75k / 4L-R / W	75	380 ± 20%	500 * 550 * 240mm
Gy svg-0.4-100k / 4L-R / W	100	380 ± 20%	500 * 550 * 240mm
Gy svg-0.5-90k / 4L-R / W	90	500 ± 20%	495 * 675 * 275mm
Gy SVG-0.69-120K / 4L-R / W	120	I-690 ± 20%	495 * 675 * 275mm
