I-500V rack Mount strator generator
I-500V rack Mound Static Var Generator yakhelwe ukuhlinzeka ngokokulunywa kwamandla kagesi okuqinile kanye nokuqina kwamandla okuqinisa izinhlelo ezifunwayo. Kumabhizinisi afuna ukusebenza kahle kanye nokwethembeka, acele isilinganiso namuhla! Iqembu lethu lilungele ukunikela ngezixazululo ezenzelwe wena ukuze ahlangabezane nezidingo zakho ezihlukile. Ngobuchwepheshe obuthuthukisiwe nokusebenza okuthembekile, lo generator uzokwandisa amasistimu akho wamandla futhi anciphise izindleko zamandla.
I-500V rack Mound Static Var Generator (SVG) inikezela isinxephezelo samandla asebenzayo ashukumisayo wezinhlelo zikagesi ezintathu ze-500V. Usebenzisa ukulawula kwe-DSP + CPLD yedijithali kanye ne-topology enezinga ezintathu, kunikeza isinxephezelo esisheshayo nesinembile, ukufeza isikhathi esigcwele sokuphendula esingaphansi kwama-10ms. I-Rack Mount Design yenza lula ukufakwa nokulungiswa ngaphakathi kwama-racks ajwayelekile we-19-intshi Server. Le SVG yenzelwe umthamo olinganiselwe we-90kvar, okwenza ilungele izinhlelo zokusebenza eziphezulu zamandla.
Incazelo Model:
| Uhlobo lwemoto | Into exabanakayo | 0.5 | 90K | / | 4L | R |
| Ikhodi yebhizinisi | I-Static Var generator | Ileveli ye-Voltage I-0.5: 500V ± 20% |
Umthamo olinganiselwe (kvar) ikota engama-90 | I-3L: Isigaba esithathu-sigaba ezintathu I-4L: Isigaba Esithathu-Izintambo ezine |
R: I-Rack Mount |
Izici:
● Sebenzisa i-DSP + CPLD Yonke i-Digital Control Core, ubuchwepheshe be-topology ezintathu, isu eliphakeme lokuthola amandla i-algorithm ne-PWM yokulawula i-PWM ukufezekisa isinxephezelo esinamandla nesinembile samandla asebenzayo.
● Yamukela ukwakheka okulungiselelwe, okusiza ukuxhumana okuhambisanayo kwamamojula amaningi, kuthatha isikhala esincane futhi kulula ukukugcina.
● Idizayini yokwakheka kwe-Independent Air Ducts kanye nama-WETE WAREHOSEes aqinisekisa ukusebenza okuzinzile kwemishini.
● Yenza isinxephezelo esiguquguqukayo esigcwele samandla asebenzayo asebenzayo namandla okusebenza kabusha we-capacive, futhi axazulule inkinga engalingani emithathu ngasikhathi sinye.
● Ijubane lokuphendula elinamandla kulo mthwalo lisezingeni lama-millisecond, elingafinyelela isinxephezelo esinamandla nesinembile samandla asebenzayo wemithwalo yomthelela.
Izicelo:
I-500V RACK Mount Mark Generator Thola Isicelo kumasethingi e-Medium-Voltage Izilungiselelo Ezidinga Ukulawulwa Kwamandla Okusebenzayo:
● Ukulungiswa kwamandla okusebenza kwamandla aphakathi nendawo:Ukwenza ngcono amandla isici kuma-medium-voltage (500V) ezinhlelweni, ukunciphisa izindleko zikagesi nokwenza kahle umthamo wohlelo.
● Ukulawulwa Kwemoto Ephakathi nendawo:Ukuthuthukisa ukusebenza kahle kanye nokusebenza kwama-voltage voltage vols ngokunxephezela ukulungiswa kwamandla okusebenzayo.
● Ukuhlanganiswa kwamandla okuvuselelekayo (i-medium-voltage):Ukusekela ukuhlanganiswa kwemithombo yamandla ephansi evuselelekayo yamandla, ukuqinisekisa ukuqina kwegridi kanye nekhwalithi yamandla.
● Ukuphathwa kwamandla anamandla ezimboni:Ukunikeza amandla aqinile kanye nekhwalithi yamandla ethuthukisiwe yezinqubo ezisindayo zezimboni ezisebenza ezinhlelweni ezingama-500V.
I-500V rack Mount Mark Generator inikezela ngesixazululo esinamandla nesisebenzayo sokuthuthukisa ikhwalithi yamandla nokwandisa kahle ezinhlelweni zamandla akwamandla aphakathi kwezimboni.
Amapharamitha Ezobuchwepheshe:
| I-220V Series | I-380V Series | I-500V Series | I-690V Series | |||
| Ukuphakama phezu kolwandle | <2000m, ngenhla kuka-2000m, okukhiqizayo ngokusho kwe-GB / T3859.2 | |||||
| Izinga lokushisa elikhona | -20 ~ + 50 ℃ | |||||
| Umswakama ohlobene | ≤90%, Akukho ukubuyiselwa emuva ebusweni lapho izinga lokushisa eliphansi lanyanga zonke lingu-25 ℃ | |||||
| Izinga lokungcola | I-Level III ngezansi | |||||
| Voltage osebenzayo | I-AC220V ± 20% | AC380V ± 20% | AC500V ± 20% | I-AC690V ± 20% | ||
| Imvamisa yokusebenza | I-50hz ± 5% | |||||
| Kulinganiselwe Isinxephezelo Senkokhelo | I-5kvar | 15 / 35/15 / 75 / 100kvar | I-90kvar | I-120kvar | ||
| Isakhiwo segridi | L / n | I-3P3w / 3P4W | ||||
| Inani lamayunithi axhumeke ngokufana | -Nethemba | |||||
| Ukusebenza kahle komshini okuphelele | ≥97% | |||||
| Imvamisa ekwi-off | 32Khz | I-16KHZ | 12.8kHz | 12.8kHz | ||
| Ukukhetha umsebenzi | Amandla asebenzayo | I-Reactive PO Wer, Reactive PO Wer + Mibalance | ||||
| Izinga Lokulungiswa Kwamandla Amandla | ≥99% | > 95% | ||||
| Isikhathi sokuphendula esigcwele | <10ms | |||||
| Isixokoxoko | ≤60db | ≤60db | ≤65DB | ≤65DB | ||
| Indlela yokulawula | 2-Way Rs485 isikhombimsebenzisi (isekela i-GPRS / WIFI) | |||||
| Ukuvikela | Ukulayisha ngokweqile, isoftware / ye-Hardware ephezulu kakhulu, i-grid screvoltage kanye nokuvinjwa kwamandla, ukwehluleka kwamandla, ukuvikelwa okuphezulu, ukuvikela imvamisa, njll. | Ukulayisha ngokweqile, isoftware / i-Overculvent Overcursent, i-Grid Overvoltage kanye ne-Undervoltage, I-Grid Voltage Imbalince, Amandla Amandla, Ukuhlukumezeka Kwamandla, Ukuvama imvamisa, Ukuvikelwa Kwesilinganiso, njll. | ||||
| Indlela yokufaka | Rack / kufakwe odongeni | Isikali | ||||
| Umugqa ongenayo | Emuva okungenayo (uhlobo lwe-rack), okungenayo okungenayo (okufakwe odongeni) | Emuva umugqa ongenayo | ||||
| Ileveli yokuvikela | I-IP20 | |||||
Model & Procation:
| Amamodeli | ||||
|---|---|---|---|---|

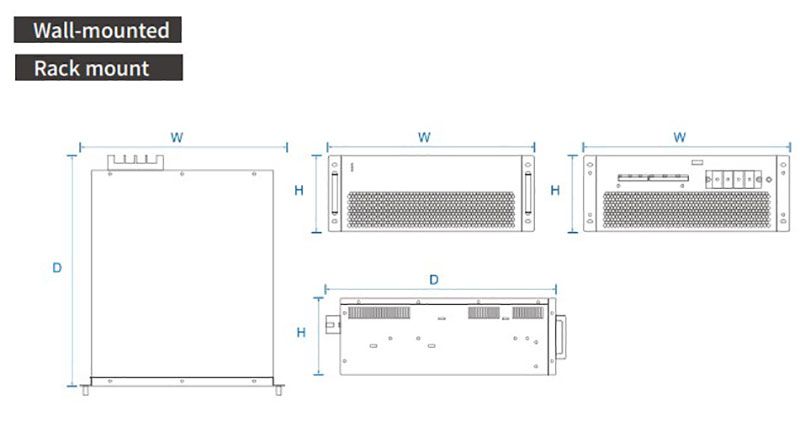

| Inombolo yemodeli | Umthamo wesinxephezelo (kvar) | I-System Voltage (V) | Ubukhulu (D * w * h) | Indlela yokupholisa |
| Gy svg-0.22-5k / 2L-R / W | 5 | 220 | 220 * 330 * 160mm | Ukuphoqelelwa komoya komoya |
| Gy svg-0.4-15k / 4L-R / W | 15 | 380 ± 20% | 460 * 490 * 89mm | |
| Gy svg-0.4-35k / 4L-R / W | 35 | 380 ± 20% | 460 * 490 * 89mm | |
| Gy svg-0.4-50k / 4L-R / W | 50 | 380 ± 20% | 500 * 510 * 190mm | |
| Gy svg-0.4-75k / 4L-R / W | 75 | 380 ± 20% | 500 * 550 * 240mm | |
| Gy svg-0.4-100k / 4L-R / W | 100 | 380 ± 20% | 500 * 550 * 240mm | |
| Gy svg-0.5-90k / 4L-R / W | 90 | 500 ± 20% | 495 * 675 * 275mm | |
| Gy SVG-0.69-120K / 4L-R / W | 120 | I-690 ± 20% | 495 * 675 * 275mm | |
