I-500V eyakhiwe ngodonga olusebenzayo
Ufuna izixazululo ezinhle kakhulu zokuthuthukisa ikhwalithi yamandla? Isihlungi sethu se-Active Harmonic yethu esisebenzayo esingu-500V sinikeza ukusebenza okusebenzayo nokuvikelwa okuthembekile. Thola ukuthi izixazululo ezintsha zikaGeya zingahlangabezana kanjani nezidingo zakho. Xhumana nathi ukuthola eminye imininingwane!
Isihlungi se-harmonic esisezingeni eliphakeme se-500V Sisebenzisa i-DSP + CPLD Digital Control Core Colology kanye ne-Topology Yezinga Elincane, le ahf ihambisa isinxephezelo samanje se-harmonic. Idizayini yayo evumelanayo ivumela izixazululo ezikali ngokuxhumeka okuhambisanayo, ukwenza lula ukufakwa nokulungisa. I-500V efakwe odongeni i-AHF ngempumelelo iHarmonics kusuka ku-2nd kuya ku-oda le-2 kuya ku-50, ifinyelela isilinganiso sokuhlunga esifinyelela ku-95%. Kukalwe nge-100a, le yunithi ebekwe odongeni iqinisekisa ikhwalithi ethembekile yamandla kuzicelo zezimboni eziphakeme.
Incazelo Model:
| Uhlobo lwemoto | Ahf | 0.4 | 50A | / | 4L | W |
| Ikhodi yebhizinisi | Isihlungi esisebenzayo se-harmonic | Ileveli ye-Voltage I-0.5: 500V ± 20% |
Umthamo olinganiselwe (kvar) 100a | I-3L: Isigaba esithathu-sigaba ezintathu I-4L: Isigaba Esithathu-Izintambo ezine |
W: Kufakwe odongeni |
Izici:
● Sebenzisa i-DSP + CPLD Yonke i-Digital Control Core, ubuchwepheshe be-topology ezintathu, isu lokutholwa kwe-allorithm ne-PWM lokulawula i-PWM ukufezekisa isinxephezelo esinembile samanje se-harmonic yamanje.
● Yamukela ukwakheka okulungiselelwe, okusiza ukuxhumana okufanayo kwamamojula amaningi, kuthatha isikhala esincane futhi kulula ukuwugcina.
● Idizayini yokwakheka kwe-Independent Air Ducts kanye nama-WETE WAREHOSEes aqinisekisa ukusebenza okuzinzile kwemishini.
● Ingahlunga i-harmonics kunhlobonhlobo ye-harmonics, kusuka ku-2 kuye ku-50 Harmonics, futhi ixazulule inkinga yokungalingani kwesigaba ezintathu ngasikhathi sinye.
● Izinga lokuhlunga le-harmonic liphezulu. Uma umthamo uvumela, isilinganiso sokuhlunga samanje se-harmonic singaba phezulu njengo-95%. Setha okungu-100% okukhawulelwe kokukhawulelwa kwamanje ukuqinisekisa ukusebenza kwesikhathi eside kwemishini.
Izicelo:
Izihlungi ze-armonic ezisebenzayo ze-500V zibalulekile ukuze zilondoloze ikhwalithi yamandla kuzilungiselelo ezahlukahlukene eziphakeme zezimboni eziphakeme:
● Imboni Eyisindayo:Ukuvikela imishini ebucayi futhi kuqinisekiswe ukusebenza okuthembekile kwemishini ephezulu yamandla ezimboni ezifana nezimayini, uwoyela kanye negesi, kanye nokwenziwa.
● Ukuhlanganiswa kwamandla okuvuselelekayo:Ukushintshashintsha kwamandla okubushelelezi nokuhlanekezelwa kwamandla okuvuselela okwethulwa ngemithombo yamandla evuselelekayo njengamandla elanga nangomoya.
● Izikhungo zedatha ephezulu ye-voltage:Ukunikeza amandla ahlanzekile okubucayi kwengqalasizinda ezikhungweni zedatha ezisebenza ngo-500V.
● Izimoto zezimboni zishayela:Ukunciphisa ukuhlukaniswa kwe-harmonic okukhiqizwe ukushayela okukhulu kwezimoto, ukuthuthukisa ukusebenza kahle kanye nokunciphisa izindleko zamandla.
Izihlungi ze-armonic ezikhuphuke ngodonga zinikeza isixazululo esinamandla nesisebenzayo sokwenza kahle ikhwalithi yamandla ekufuneni izinhlelo zokusebenza eziphezulu ze-voltage.
Amapharamitha Ezobuchwepheshe:
| I-220V Series | I-380V Series | I-500V Series | I-690V Series | ||
| Ukuphakama phezu kolwandle | <2000m, ngenhla kuka-2000m, okukhiqizayo ngokusho kwe-GB / T3859.2 | ||||
| Izinga lokushisa elikhona | -20 ~ + 50 ℃ | ||||
| Umswakama ohlobene | ≤90%, Akukho ukubuyiselwa emuva ebusweni lapho izinga lokushisa eliphansi lanyanga zonke lingu-25 ℃ | ||||
| Izinga lokungcola | I-Level III ngezansi | ||||
| Voltage osebenzayo | I-AC220V ± 20% | AC380V ± 20% | AC500V ± 20% | I-AC690V ± 20% | |
| Imvamisa yokusebenza | I-50hz ± 5% | ||||
| Isinxephezelo samanje | 25A | 25/50/75/100 / 150a | 100A | 100A | |
| Isakhiwo segridi | L / n | I-3P3w / 3P4W | I-3P3w / 3P4W | I-3P3w / 3P4W | |
| Inani lamayunithi exhunywe ngokufana | -Nethemba | ||||
| Ukusebenza kahle komshini okuphelele | ≥97% | ||||
| Isakhiwo segridi | 32Khz | I-16KHZ | 12.8kHz | 12.8kHz | |
| Uhla lwenxephezelo | 2 ~ 50times, isilinganiso esisodwa sokunxeshezelwa siyakwazi ukuguquguquka | ||||
| Ukukhetha umsebenzi | Amandla asebenzayo | Amandla asebenzayo, amandla asebenzayo + asymmetry | |||
| Amandla asebenzayo Izinga Lokunxephezelo | ≥95% | > 92% | |||
| Ukuhlunga okungathathi hlangothi ikhono | Amandla wokuhlunga angathathi hlangothi ahlabelelayo izikhathi ezi-3 zendlela yokuhlunga kwesigaba | ||||
| Isikhathi sokuphendula esigcwele | <10ms | <40ms | <40ms | <40ms | |
| Isixokoxoko | ≤60db | ≤60db | ≤65DB | ≤65DB | |
| Indlela yokulawula | 2-Way Rs485 isikhombimsebenzisi (isekela i-GPRS / WIFI) | ||||
| Ukuvikela | Ukulayisha ngokweqile, isoftware / ye-Hardware ephezulu kakhulu, i-grid screvoltage kanye nokuvinjwa kwamandla, ukwehluleka kwamandla, ukuvikelwa okuphezulu, ukuvikela imvamisa, njll. | Ukulayisha ngokweqile, isoftware / ye-Hardware Overcursent, i-Grid Overvoltage kanye ne-Undervoltage, I-Grid Voltage Mibance, Amandla Amandla, Ukuhlupheka Okuphezulu, Ukuvikelwa Kwemvamisa, Ukuvikelwa Kwemvamisa, Ukuvikelwa Okufushane, njll. | |||
| Indlela yokufaka | Rack / kufakwe odongeni | Isikali | |||
| Umugqa ongenayo | Emuva okungenayo (uhlobo lwe-rack), okungenayo okungenayo (okufakwe odongeni) | Emuva umugqa ongenayo | |||
| Ileveli yokuvikela | I-IP20 | ||||

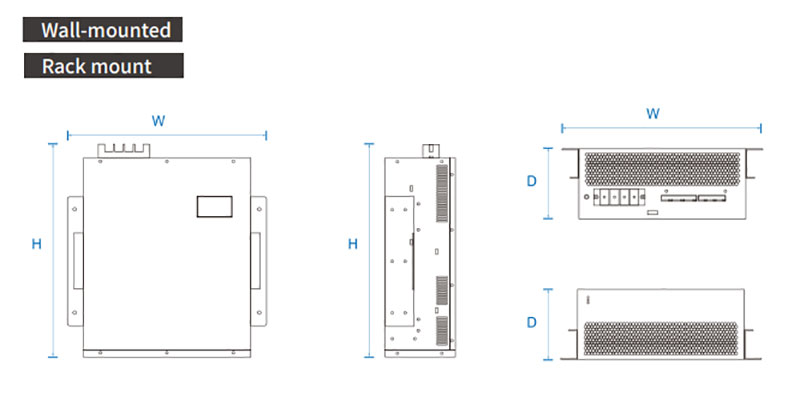

Model & Procation:
| Amamodeli | ||||
|---|---|---|---|---|
| Inombolo yemodeli | Kukalwe manje (a) | I-System Voltage (V) | Ubukhulu (D * w * h) | Indlela yokupholisa |
| Gy apf-0.22-25a / 2L-R / W | 25 | 220 | 220 * 330 * 160mm | Ukuphoqelelwa komoya komoya |
| Gy apf-0.4-25a / 4L-R / W | 25 | 380 ± 20% | 460 * 490 * 89mm | |
| Gy apf-0.4-50A / 4L-R / W | 50 | 380 ± 20% | 460 * 490 * 89mm | |
| Gy apf-0.4-75a / 4L-R / W | 75 | 380 ± 20% | 500 * 510 * 190mm | |
| Gy apf-0.4-100a / 4L-R / w | 100 | 380 ± 20% | 500 * 550 * 240mm | |
| Gy apf-0.4-150a / 4L-R / W | 150 | 380 ± 20% | 500 * 550 * 240mm | |
| Gy apf-0.5-100a / 4L-R / w | 100 | 500 ± 20% | 495 * 675 * 275mm | |
| Gy apf-0.69-100a / 4L-R / w | 100 | I-690 ± 20% | 495 * 675 * 275mm | |
