I-generator ye-static geaning yekhabethe elilodwa

Kwethulwa i-generator ye-tulic yohlobo lwesigaba esisodwa sekhabethe - Isixazululo esifanelekile sokulungiswa kwe-Power Factor kanye nokuqina kwamandla kagesi ekusebenzeni kwakho. Kwenziwe eChina, le SVG yenzelwe ukunikela ngokuphathwa kwamandla okuthembekile, okuphezulu kokusebenza kwamandla ezinhlobonhlobo zezinsiza zezimboni. Uma ufuna ukwenza ngcono amandla amandla okusebenza namandla futhi uqinisekise ukunikezwa kwamandla ezinzile, cela isilinganiso namuhla!

Thumela Uphenyo PDF Landa

Incazelo Yomkhiqizo

I-generator ye-static ye-stric eyodwa yesigaba esisodwa (SVG) inikeza isinxephezelo samandla asebenzayo ashukumisayo wezinhlelo zikagesi ezi-220V. Usebenzisa ukulawulwa kwe-DSP + CPLD Digital control kanye nama-algorithms athuthukisiwe wokutholwa kwamandla wamandla, anikeza isinxephezelo esinembile nesisheshayo ngesikhashana esigcwele sokuphendula esingaphansi kwama-10ms. Idizayini yohlobo lweKhabhinethi iqinisekisa ukuvikeleka okuqinile nokufakwa okulula kwezindawo ezahlukahlukene zezimboni. Kutholakala emandleni ahlukahlukene kusuka ku-5kvar kuya ku-55kvar, le SVG inikeza izidingo ezahlukahlukene zesigaba esisodwa.

Incazelo Model:

Uhlobo lwemoto	Into exabanakayo	0.22	50k	/	2L	C
Ikhodi yebhizinisi	I-Static Var generator	Ileveli ye-Voltage I-0.22: 220V	I-Rated Peract (Kvar) 5/8/7/7/7/7/55kvar		2l: Isigaba esisodwa	C: i-shisint

Izici:

● Sebenzisa i-DSP + CPLD Yonke i-Digital Control Core, ubuchwepheshe be-topology ezintathu, isu eliphakeme lokuthola amandla i-algorithm ne-PWM yokulawula i-PWM ukufezekisa isinxephezelo esinamandla nesinembile samandla asebenzayo.
● Yamukela ukwakheka okulungiselelwe, okusiza ukuxhumana okuhambisanayo kwamamojula amaningi, kuthatha isikhala esincane futhi kulula ukukugcina.
● Idizayini yokwakheka kwe-Independent Air Ducts kanye nama-WETE WAREHOSEes aqinisekisa ukusebenza okuzinzile kwemishini.
● Yenza isinxephezelo esiguquguqukayo esigcwele samandla asebenzayo asebenzayo namandla okusebenza kabusha we-capacive, futhi axazulule inkinga engalingani emithathu ngasikhathi sinye.
● Ijubane lokuphendula elinamandla kulo mthwalo lisezingeni lama-millisecond, elingafinyelela isinxephezelo esinamandla nesinembile samandla asebenzayo wemithwalo yomthelela.

Izicelo:

Ama-generator we-single-esigameko sekhabethe anhlobonhlobo ama-turnic vargetors alungele izinhlelo zokusebenza zesigaba esisodwa ezidinga ukulawulwa kwamandla okusebenzayo:

● Ukulungiswa Kombhalo Wamandla Oyedwa:Ukwenza ngcono amandla Factor kuzinhlelo ze-220V zesigaba se-220V, kunciphisa izindleko zikagesi nokwenza kahle umthamo wohlelo.
● Ukusebenziseka kalula kwesigaba sodwa:Ukuthuthukisa ukusebenza kanye nokusebenza kahle kwemishini yesigaba esisodwa ngokunxephezela ngamandla ku-Reactive Power.
● Ikhwalithi Yamandla Wokuhlala:Ukuthuthukisa ikhwalithi yamandla kuzilungiselelo zokuhlala ngokunciphisa ukuguquguquka kwe-voltage kanye ne-harmonics ehambisana nemithwalo esebenzayo.
● Ukuphathwa kwamandla okukhanya kwezimboni (isigaba esisodwa):Ukuhlinzeka ngamandla athile azinzile kanye nekhwalithi yamandla ethuthukisiwe yezinqubo zezimboni ezisebenza ngamandla esigabeni esisodwa.

Abakhiqizi be-Single-Isigaba seKhabhinethi-hlobo sekhabethe banikezela ngesisombululo esisebenzayo nesisebenzayo sokuphatha ikhwalithi yamandla nokwandisa kahle ezinhlelweni zikagesi zesigaba esisodwa.

Single-phase Cabinet-type Static Var Generator

Amapharamitha Ezobuchwepheshe:

	I-220V Series	I-380V Series		I-500V Series		I-690V Series
Ukuphakama phezu kolwandle	<2000m, ngenhla kuka-2000m, okukhiqizayo ngokusho kwe-GB / T3859.2
Izinga lokushisa elikhona	-20 ~ + 50 ℃
Umswakama ohlobene	≤90%, Akukho ukubuyiselwa emuva ebusweni lapho izinga lokushisa eliphansi lanyanga zonke lingu-25 ℃
Izinga lokungcola	I-Level III ngezansi
Voltage osebenzayo	I-AC220V ± 20%	AC380V ± 20%		AC500V ± 20%		I-AC690V ± 20%
Imvamisa yokusebenza	I-50hz ± 5%
Kulinganiselwe Isinxephezelo Senkokhelo	I-5kvar	15 / 35/15 / 75 / 100kvar		I-90kvar		I-120kvar
Isakhiwo segridi	L / n	I-3P3w / 3P4W
Inani lamayunithi axhumeke ngokufana	-Nethemba
Ukusebenza kahle komshini okuphelele	≥97%
Imvamisa ekwi-off	32Khz	I-16KHZ		12.8kHz		12.8kHz
Ukukhetha umsebenzi	Amandla asebenzayo	I-Reactive PO Wer, Reactive PO Wer + Mibalance
Izinga Lokulungiswa Kwamandla Amandla	≥99%	> 95%
Isikhathi sokuphendula esigcwele	<10ms
Isixokoxoko	≤60db	≤60db		≤65DB		≤65DB
Indlela yokulawula	2-Way Rs485 isikhombimsebenzisi (isekela i-GPRS / WIFI)
Ukuvikela	Ukulayisha ngokweqile, isoftware / ye-Hardware ephezulu kakhulu, i-grid screvoltage kanye nokuvinjwa kwamandla, ukwehluleka kwamandla, ukuvikelwa okuphezulu, ukuvikela imvamisa, njll.		Ukulayisha ngokweqile, isoftware / i-Overculvent Overcursent, i-Grid Overvoltage kanye ne-Undervoltage, I-Grid Voltage Imbalince, Amandla Amandla, Ukuhlukumezeka Kwamandla, Ukuvama imvamisa, Ukuvikelwa Kwesilinganiso, njll.
Indlela yokufaka	Rack / kufakwe odongeni				Isikali
Umugqa ongenayo	Emuva okungenayo (uhlobo lwe-rack), okungenayo okungenayo (okufakwe odongeni)				Emuva umugqa ongenayo
Ileveli yokuvikela	I-IP20

Model & Procation:

Single-phase Cabinet-type Static Var Generator

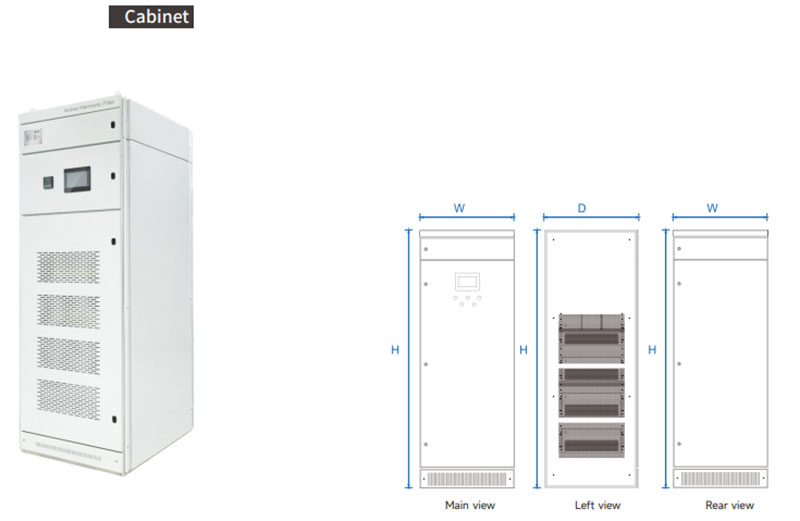

Imodeli yedivayisi yeKhabhinethi
Inombolo yemodeli	Umthamo wesinxephezelo (kvar)	I-System Voltage (V)	Ubukhulu (D * w * h)	Indlela yokupholisa
Gy svg-0.4-200k / 4L-C	200	380 ± 20%	I-800 * 1000 * 2200mm	Ukuphoqelelwa komoya komoya
Gy svg-0.4-250k / 4L-C	250	380 ± 20%	I-800 * 1000 * 2200mm
Gy svg-0.4-300k / 4L-C	300	380 ± 20%	I-800 * 1000 * 2200mm
Gy svg-0.4-400k / 4L-C	400	380 ± 20%	I-800 * 1000 * 2200mm
Gy svg-0.5-270k / 4L-C	270	500 ± 20%	I-800 * 1000 * 2200mm
Gy svg-0.69-360k / 4L-C	360	I-690 ± 20%	I-800 * 1000 * 2200mm
