I-500V efakwe e-static generator ye-500V

Udinga i-generator ethembekile engu-500V UGeya unikeza izixazululo eziphezulu zokusebenza ngokunemba okuhle nokusebenza kahle. Isixazululo esenziwe ngezifiso, sithumele umbuzo wakho namuhla! Sinikezela ngokusekelwa okufika ngesikhathi, ukulungiswa okuphansi, kanye nensizakalo ehlukile. Xhumana nathi manje ukuze uthuthukise ukusebenza kohlelo lwakho nokukhiqiza!

Thumela Uphenyo

Incazelo Yomkhiqizo

Ukuchazwa Komkhiqizo:

I-generator ye-500V ebekwe ngodonga i-gerator (SVG) inikeza isinxephezelo samandla asebenzayo ashukumisayo wezinhlelo zikagesi ezintathu ze-500V. Usebenzisa ukulawulwa kwedijithali kwe-DSP + CPLD kanye ne-topology ethuthukisiwe ethuthukile, i-SVG ihambisa isinxephezelo esiqondile nesisheshayo, ifinyelela impendulo ephelele ngaphansi kwe-10MS. Idizayini yayo eshukumisayo isekela ukukala, kanye nokucushwa okufakwe odongeni kusindisa isikhala esibalulekile. Le SvG ibhekana ngempumelelo kokubili okungalingani kwamandla okuqala futhi okusebenzayo kwe-capacive. Ngomthamo olinganiselwe we-90kvar, i-generator ye-static get ye-500V ebekwe ngo-500V inikezela ngesixazululo esiqinile sezicelo ezifunwayo.

Incazelo Model:

Uhlobo lwemoto	Into exabanakayo	0.5	90K	/	4L	W
Ikhodi yebhizinisi	I-Static Var Generator	Ileveli ye-Voltage I-0.5: 500V ± 20%	Umthamo olinganiselwe (kvar) ikota engama-90		I-3L: Isigaba esithathu-sigaba ezintathu I-4L: Isigaba Esithathu-Izintambo ezine	W: Kufakwe odongeni

Izici:

● Sebenzisa i-DSP + CPLD Yonke i-Digital Control Core, ubuchwepheshe be-topology ezintathu, isu eliphakeme lokuthola amandla i-algorithm ne-PWM yokulawula i-PWM ukufezekisa isinxephezelo esinamandla nesinembile samandla asebenzayo.
● Yamukela ukwakheka okulungiselelwe, okusiza ukuxhumana okuhambisanayo kwamamojula amaningi, kuthatha isikhala esincane futhi kulula ukukugcina.
● Idizayini yokwakheka kwe-Independent Air Ducts kanye nama-WETE WAREHOSEes aqinisekisa ukusebenza okuzinzile kwemishini.
● Yenza isinxephezelo esiguquguqukayo esigcwele samandla asebenzayo asebenzayo namandla okusebenza kabusha we-capacive, futhi axazulule inkinga engalingani emithathu ngasikhathi sinye.
● Ijubane lokuphendula elinamandla kulo mthwalo lisezingeni lama-millisecond, elingafinyelela isinxephezelo esinamandla nesinembile samandla asebenzayo wemithwalo yomthelela.

Izicelo:

Ama-generator we-tulic we-tratic afakwe odongeni afaneleke kahle ngokwenza kahle ikhwalithi yamandla kuhlelo lokusebenza olungamandla aphezulu aphezulu aphezulu:

● Izilungiselelo Ezisindayo Zezimboni:Ukuqina kwamandla kagesi kanye nokwenza ngcono amandla esicini ezindaweni ezisindayo zezimboni ezisebenza ngo-500V.
● I-I-High-Voltage Motor Drives:Ukunxephezela ukuguquguquka kwamandla okusebenza okusebenzayo kusuka kuma-motor aphezulu amandla ashukumisayo, ukuthuthukisa ukusebenza kahle kwezimoto kanye nokunciphisa ukusetshenziswa kwamandla.
● Izinhlelo ezingama-500v zokusabalalisa amandla:Ukuthuthukisa ikhwalithi yamandla nokuqina kumanethiwekhi okusabalalisa ama-500V.
● Ukuhlanganiswa kwamandla okuvuselelekayo (500V):Ukusekela ukuqina kwegridi kanye nekhwalithi yamandla ezinhlelweni ezingama-500V ezihlanganisa imithombo yamandla evuselelekayo.

Ama-generator ahlanganisiwe we-500V odotsheni anikezela ngesisombululo esithembekile nesisebenzayo sokuphatha amandla asebenzayo futhi aqinisekise ukusebenza okuhle kwezinhlelo zikagesi zesigaba esingu-500V.

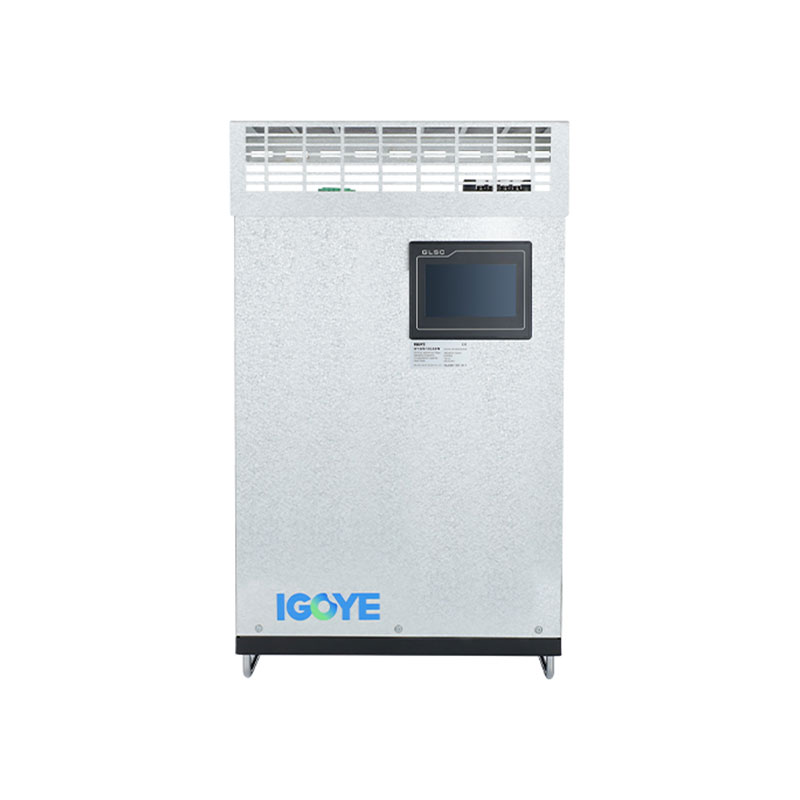

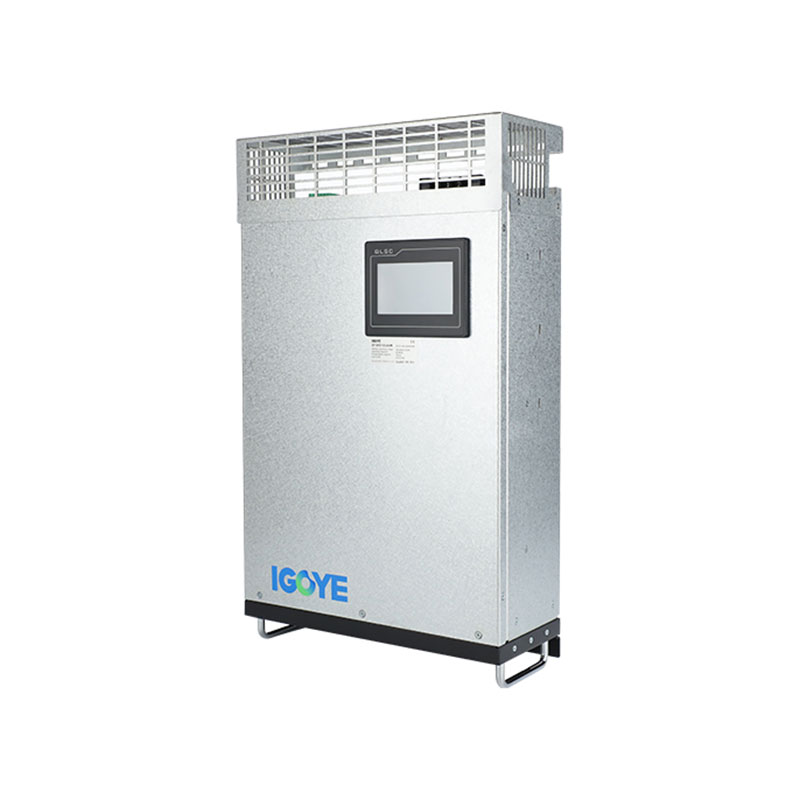

500V Wall-mounted Static Var Generator

Amapharamitha Ezobuchwepheshe:

	I-220V Series	I-380V Series		I-500V Series		I-690V Series
Ukuphakama phezu kolwandle	<2000m, ngenhla kuka-2000m, okukhiqizayo ngokusho kwe-GB / T3859.2
Izinga lokushisa elikhona	-20 ~ + 50 ℃
Umswakama ohlobene	≤90%, Akukho ukubuyiselwa emuva ebusweni lapho izinga lokushisa eliphansi lanyanga zonke lingu-25 ℃
Izinga lokungcola	I-Level III ngezansi
Voltage osebenzayo	I-AC220V ± 20%	AC380V ± 20%		AC500V ± 20%		I-AC690V ± 20%
Imvamisa yokusebenza	I-50hz ± 5%
Kulinganiselwe Isinxephezelo Senkokhelo	I-5kvar	15 / 35/15 / 75 / 100kvar		I-90kvar		I-120kvar
Isakhiwo segridi	L / n	I-3P3w / 3P4W
Inani lamayunithi axhumeke ngokufana	-Nethemba
Ukusebenza kahle komshini okuphelele	≥97%
Imvamisa ekwi-off	32Khz	I-16KHZ		12.8kHz		12.8kHz
Ukukhetha umsebenzi	Amandla asebenzayo	I-Reactive PO Wer, Reactive PO Wer + Mibalance
Izinga Lokulungiswa Kwamandla Amandla	≥99%	> 95%
Isikhathi sokuphendula esigcwele	<10ms
Isixokoxoko	≤60db	≤60db		≤65DB		≤65DB
Indlela yokulawula	2-Way Rs485 isikhombimsebenzisi (isekela i-GPRS / WIFI)
Ukuvikela	Ukulayisha ngokweqile, isoftware / ye-Hardware ephezulu kakhulu, i-grid screvoltage kanye nokuvinjwa kwamandla, ukwehluleka kwamandla, ukuvikelwa okuphezulu, ukuvikela imvamisa, njll.		Ukulayisha ngokweqile, isoftware / i-Overculvent Overcursent, i-Grid Overvoltage kanye ne-Undervoltage, I-Grid Voltage Imbalince, Amandla Amandla, Ukuhlukumezeka Kwamandla, Ukuvama imvamisa, Ukuvikelwa Kwesilinganiso, njll.
Indlela yokufaka	Rack / kufakwe odongeni				Isikali
Umugqa ongenayo	Emuva okungenayo (uhlobo lwe-rack), okungenayo okungenayo (okufakwe odongeni)				Emuva umugqa ongenayo
Ileveli yokuvikela	I-IP20

Model & Procation:

500V Wall-mounted Static Var Generator

Amamodeli
Inombolo yemodeli	Umthamo wesinxephezelo (kvar)	I-System Voltage (V)	Ubukhulu (D * w * h)	Indlela yokupholisa
Gy svg-0.22-5k / 2L-R / W	5	220	220 * 330 * 160mm	Ukuphoqelelwa komoya komoya
Gy svg-0.4-15k / 4L-R / W	15	380 ± 20%	460 * 490 * 89mm
Gy svg-0.4-35k / 4L-R / W	35	380 ± 20%	460 * 490 * 89mm
Gy svg-0.4-50k / 4L-R / W	50	380 ± 20%	500 * 510 * 190mm
Gy svg-0.4-75k / 4L-R / W	75	380 ± 20%	500 * 550 * 240mm
Gy svg-0.4-100k / 4L-R / W	100	380 ± 20%	500 * 550 * 240mm
Gy svg-0.5-90k / 4L-R / W	90	500 ± 20%	495 * 675 * 275mm
Gy SVG-0.69-120K / 4L-R / W	120	I-690 ± 20%	495 * 675 * 275mm
