I-220V efakwe e-static generator

Ikhwalithi ephezulu ye-220v efakwe e-static gergerator ye-static ye-static yezinhlelo zesigaba esisodwa. Isinxephezelo Samandla esisebenzayo esisebenzayo, Impendulo ye- <10ms, i-DSP + CPLD control. Kuthuthukisa ikhwalithi yamandla ebhizinisini, ebhizinisini elincane, nezinhlelo zokusebenza zamandla avuselelekayo. I-compact, design efakwe odongeni.

Thumela Uphenyo

Incazelo Yomkhiqizo

Ukuchazwa Komkhiqizo:

I-TEGERATER ye-Static Generator (SVG ebekwe ngodonga Usebenzisa ukulawulwa kwedijithali kwe-DSP + CPLD kanye ne-topology enezinga ezintathu, le SVG inikeza isinxephezelo esinembile nesiphendulayo, nesikhathi sokuphendula esigcwele ngaphansi kwayi-10ms. Idizayini efakwe odongeni isongela isikhala futhi yenza lula ukufakwa. Le svg ibhekana ngempumelelo nokushintshashintsha kwamandla okuguquguquka kwamandla okusebenzayo futhi okuthuthukisa amandla, ukuthuthukisa ikhwalithi yamandla nokwenza uhlelo. Kutholakala kumthamo we-5kvar, i-Static Generator ye-Static Var efakwe odongeni ngo-220V iyisisombululo esisebenzayo nesisebenzayo sezicelo zesigaba esisodwa.

Incazelo Model:

Uhlobo lwemoto	Into exabanakayo	0.22	5K	/	4L	W
Ikhodi yebhizinisi	I-Static Var Generator	Ileveli ye-Voltage I-0.22: 220V	I-Rated Peract (Kvar) 5/8/7/7/7/7/55kvar		2l: Isigaba esisodwa I-3L: Isigaba esithathu-sigaba ezintathu I-4L: Isigaba Esithathu-Izintambo ezine	W: Kufakwe odongeni

Izici:

● Sebenzisa i-DSP + CPLD Yonke i-Digital Control Core, ubuchwepheshe be-topology ezintathu, isu eliphakeme lokuthola amandla i-algorithm ne-PWM yokulawula i-PWM ukufezekisa isinxephezelo esinamandla nesinembile samandla asebenzayo.
● Yamukela ukwakheka okulungiselelwe, okusiza ukuxhumana okuhambisanayo kwamamojula amaningi, kuthatha isikhala esincane futhi kulula ukukugcina.
● Idizayini yokwakheka kwe-Independent Air Ducts kanye nama-WETE WAREHOSEes aqinisekisa ukusebenza okuzinzile kwemishini.
● Yenza isinxephezelo esiguquguqukayo esigcwele samandla asebenzayo asebenzayo namandla okusebenza kabusha we-capacive, futhi axazulule inkinga engalingani emithathu ngasikhathi sinye.
● Ijubane lokuphendula elinamandla kulo mthwalo lisezingeni lama-millisecond, elingafinyelela isinxephezelo esinamandla nesinembile samandla asebenzayo wemithwalo yomthelela.

Izicelo:

I-220V efakwe e-static garnic vargetors ilungele ukuthuthukisa ikhwalithi yamandla kuzinhlelo zokusebenza ezahlukahlukene zesigaba esisodwa:

● Ukusatshalaliswa kwamandla okuhlala:Ukuthuthukisa isici samandla kanye nokuqina kwamandla kagesi emakhaya nasezindlini.
● Amabhizinisi amancane:Ukuthuthukisa ikhwalithi yamandla nokunciphisa izindleko zamandla kumabhizinisi anikwe amandla esihlabe isigaba esisodwa.
● Imithwalo yemoto ye-single-Phase:Ukunxephezela ukuguquguquka kwamandla okusebenza kabusha kusuka kuma-motor we-lingle-Phase, kuthuthukisa ukusebenza kahle kwezimoto.
● Izinhlelo zamandla avuselelekayo (isigaba esisodwa):Ukusekela ukuqina kwegridi kanye nekhwalithi yamandla ezinhlelweni zesigaba esisodwa nge imithombo yamandla evuselelwe evuselelwa.

I-220V efakwe e-static efakwe e-static vargetors inikezela ngesixazululo esisebenzayo nesisebenzayo sokwenza kahle ikhwalithi yamandla kanye nokusebenza kahle ezinhlelweni zikagesi ezi-220V.

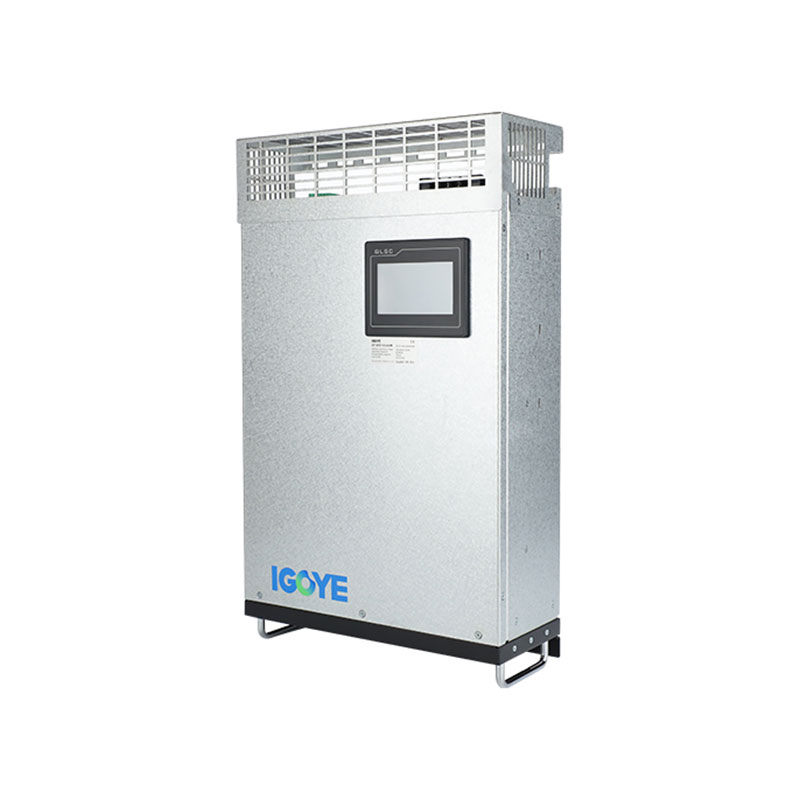

220V Wall-mounted Static Var Generator

Amapharamitha Ezobuchwepheshe:

	I-220V Series	I-380V Series		I-500V Series		I-690V Series
Ukuphakama phezu kolwandle	<2000m, ngenhla kuka-2000m, okukhiqizayo ngokusho kwe-GB / T3859.2
Izinga lokushisa elikhona	-20 ~ + 50 ℃
Umswakama ohlobene	≤90%, Akukho ukubuyiselwa emuva ebusweni lapho izinga lokushisa eliphansi lanyanga zonke lingu-25 ℃
Izinga lokungcola	I-Level III ngezansi
Voltage osebenzayo	I-AC220V ± 20%	AC380V ± 20%		AC500V ± 20%		I-AC690V ± 20%
Imvamisa yokusebenza	I-50hz ± 5%
Kulinganiselwe Isinxephezelo Senkokhelo	I-5kvar	15 / 35/15 / 75 / 100kvar		I-90kvar		I-120kvar
Isakhiwo segridi	L / n	I-3P3w / 3P4W
Inani lamayunithi axhumeke ngokufana	-Nethemba
Ukusebenza kahle komshini okuphelele	≥97%
Imvamisa ekwi-off	32Khz	I-16KHZ		12.8kHz		12.8kHz
Ukukhetha umsebenzi	Amandla asebenzayo	I-Reactive PO Wer, Reactive PO Wer + Mibalance
Izinga Lokulungiswa Kwamandla Amandla	≥99%	> 95%
Isikhathi sokuphendula esigcwele	<10ms
Isixokoxoko	≤60db	≤60db		≤65DB		≤65DB
Indlela yokulawula	2-Way Rs485 isikhombimsebenzisi (isekela i-GPRS / WIFI)
Ukuvikela	Ukulayisha ngokweqile, isoftware / ye-Hardware ephezulu kakhulu, i-grid screvoltage kanye nokuvinjwa kwamandla, ukwehluleka kwamandla, ukuvikelwa okuphezulu, ukuvikela imvamisa, njll.		Ukulayisha ngokweqile, isoftware / i-Overculvent Overcursent, i-Grid Overvoltage kanye ne-Undervoltage, I-Grid Voltage Imbalince, Amandla Amandla, Ukuhlukumezeka Kwamandla, Ukuvama imvamisa, Ukuvikelwa Kwesilinganiso, njll.
Indlela yokufaka	Rack / kufakwe odongeni				Isikali
Umugqa ongenayo	Emuva okungenayo (uhlobo lwe-rack), okungenayo okungenayo (okufakwe odongeni)				Emuva umugqa ongenayo
Ileveli yokuvikela	I-IP20

Model & Procation:

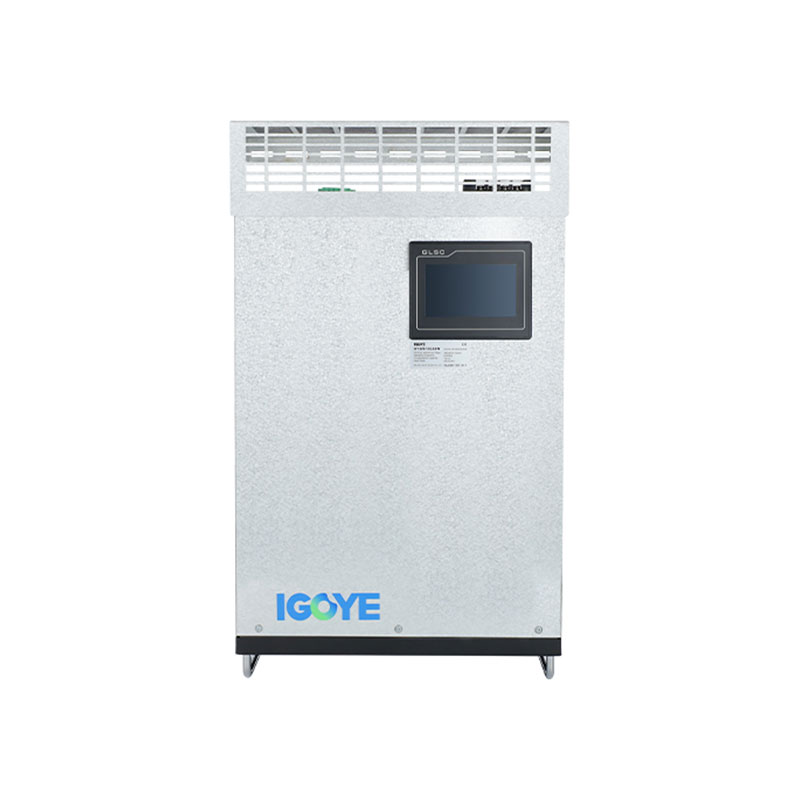

220V Wall-mounted Static Var Generator

Amamodeli
Inombolo yemodeli	Umthamo wesinxephezelo (kvar)	I-System Voltage (V)	Ubukhulu (D * w * h)	Indlela yokupholisa
Gy svg-0.22-5k / 2L-R / W	5	220	220 * 330 * 160mm	Ukuphoqelelwa komoya komoya
Gy svg-0.4-15k / 4L-R / W	15	380 ± 20%	460 * 490 * 89mm
Gy svg-0.4-35k / 4L-R / W	35	380 ± 20%	460 * 490 * 89mm
Gy svg-0.4-50k / 4L-R / W	50	380 ± 20%	500 * 510 * 190mm
Gy svg-0.4-75k / 4L-R / W	75	380 ± 20%	500 * 550 * 240mm
Gy svg-0.4-100k / 4L-R / W	100	380 ± 20%	500 * 550 * 240mm
Gy svg-0.5-90k / 4L-R / W	90	500 ± 20%	495 * 675 * 275mm
Gy SVG-0.69-120K / 4L-R / W	120	I-690 ± 20%	495 * 675 * 275mm
