I-Rack Mount Advanced Var generator
I-Geya Rack Mount Advanced Var Var Generator iyisisombululo esithembekile sokunxephezelwa kwamandla okusebenza ngamandla. I-DSP + CPLD control, <10ms impendulo, design modular, 220V-690V, 5kvar-400kvar. Kuthuthukisa ikhwalithi yamandla kuzicelo ezahlukahlukene.
UGeya ukhiqiza ama-rack Mount advanced advent adgerator (ASVG). Lezi asvg zinikeza isinxephezelo samandla asebenzayo ashukumisayo. Lokhu kuthuthukisa ikhwalithi yamandla. Basebenzisa ubuchwepheshe be-DSP ne-CPLD. Lokhu kuqinisekisa ukulawula okuqondile nokuphendula okusheshayo. Isikhathi sokuphendula singaphansi kwe-10ms. Lokhu kuvimbela ukwahlukana kanye nezinkinga zokuhlangana. Idizayini evumelanayo ivumela ukuxhumana okufana. Ukuxhuma amayunithi amaningi kukhulisa umthamo. UGeya unikeza amamodeli ahlukahlukene. Amamodeli amboza ama-voltages ahlukene namakhono. Ama-voltages afaka i-220V, 380V, 500V, ne-690V. Amakhono aqala kusuka ku-5kvar kuya ku-400kvar. Izici ezibalulekile zifaka phakathi ukubekwa kwe-rack kukhuphuka, ukupholisa umoya okuphoqelelwe, kanye nezici ezahlukahlukene zokuvikela.
Incazelo Model:
| Uhlobo lwemoto | A no-asvg | 0.4 | 50k | / | 4L | R |
| Ikhodi yebhizinisi | I-Static Var generator | Ileveli ye-Voltage I-0.22: 220V 0.4: 380v ± 20% I-0.5: 500V ± 20% 0.69: 690v ± 20% |
Inani elilinganiselwe (kvar) 5/10/35/15 / 75 / 100kvar | 2l: Isigaba esisodwa I-3L: Isigaba esithathu-sigaba ezintathu I-4L: Isigaba Esithathu-Izintambo ezine |
R: I-Rack Mount |
Izici:
● Sebenzisa i-DSP + CPLD Yonke i-Digital Control Core, ubuchwepheshe be-topology ezintathu, isu eliphakeme lokuthola amandla i-algorithm ne-PWM yokulawula i-PWM ukufezekisa isinxephezelo esinamandla nesinembile samandla asebenzayo.
● Yamukela ukwakheka okulungiselelwe, okusiza ukuxhumana okuhambisanayo kwamamojula amaningi, kuthatha isikhala esincane futhi kulula ukukugcina.
● Idizayini yokwakheka kwe-Independent Air Ducts kanye nama-WETE WAREHOSEes aqinisekisa ukusebenza okuzinzile kwemishini.
● Yenza isinxephezelo esiguquguqukayo esigcwele samandla asebenzayo asebenzayo namandla okusebenza kabusha we-capacive, futhi axazulule inkinga engalingani emithathu ngasikhathi sinye.
● Ijubane lokuphendula elinamandla kulo mthwalo lisezingeni lama-millisecond, elingafinyelela isinxephezelo esinamandla nesinembile samandla asebenzayo wemithwalo yomthelela.
Izicelo:
Ama-rack Mount advanced advanced vagerators anezinhlelo zokusebenza ezahlukahlukene. Bavumelana nezimboni ezahlukahlukene. Lokhu kufaka phakathi:
● Ukusatshalaliswa kwamandla okuhlala
● Ukwelashwa kwamanzi
● Amandla avuselelekayo (i-Photovoltaic)
● Ukucutshungulwa kwamakhemikhali
● Amafutha negesi
● Metallurgy
● Izimayini
● Ukukhiqiza izimoto
Lawa asvgs akhulisa ikhwalithi yamandla. Banxephezela ukuguquguquka kwamandla okusebenza kabusha. Lokhu kuthuthukisa ukuqina kohlelo kanye nokusebenza kahle.
Amapharamitha Ezobuchwepheshe:
| I-220V Series | I-380V Series | I-500V Series | I-690V Series | |||
| Ukuphakama phezu kolwandle | <2000m, ngenhla kuka-2000m, okukhiqizayo ngokusho kwe-GB / T3859.2 | |||||
| Izinga lokushisa elikhona | -20 ~ + 50 ℃ | |||||
| Umswakama ohlobene | ≤90%, Akukho ukubuyiselwa emuva ebusweni lapho izinga lokushisa eliphansi lanyanga zonke lingu-25 ℃ | |||||
| Izinga lokungcola | I-Level III ngezansi | |||||
| Voltage osebenzayo | I-AC220V ± 20% | AC380V ± 20% | AC500V ± 20% | I-AC690V ± 20% | ||
| Imvamisa yokusebenza | I-50hz ± 5% | |||||
| Kulinganiselwe Isinxephezelo Senkokhelo | I-5kvar | 15 / 35/15 / 75 / 100kvar | I-90kvar | I-120kvar | ||
| Isakhiwo segridi | L / n | I-3P3w / 3P4W | ||||
| Inani lamayunithi axhumeke ngokufana | -Nethemba | |||||
| Ukusebenza kahle komshini okuphelele | ≥97% | |||||
| Imvamisa ekwi-off | 32Khz | I-16KHZ | 12.8kHz | 12.8kHz | ||
| Ukukhetha umsebenzi | Amandla asebenzayo | I-Reactive PO Wer, Reactive PO Wer + Mibalance | ||||
| Izinga Lokulungiswa Kwamandla Amandla | ≥99% | > 95% | ||||
| Isikhathi sokuphendula esigcwele | <10ms | |||||
| Isixokoxoko | ≤60db | ≤60db | ≤65DB | ≤65DB | ||
| Indlela yokulawula | 2-Way Rs485 isikhombimsebenzisi (isekela i-GPRS / WIFI) | |||||
| Ukuvikela | Ukulayisha ngokweqile, isoftware / ye-Hardware ephezulu kakhulu, i-grid screvoltage kanye nokuvinjwa kwamandla, ukwehluleka kwamandla, ukuvikelwa okuphezulu, ukuvikela imvamisa, njll. | Ukulayisha ngokweqile, isoftware / i-Overculvent Overcursent, i-Grid Overvoltage kanye ne-Undervoltage, I-Grid Voltage Imbalince, Amandla Amandla, Ukuhlukumezeka Kwamandla, Ukuvama imvamisa, Ukuvikelwa Kwesilinganiso, njll. | ||||
| Indlela yokufaka | Rack / kufakwe odongeni | Isikali | ||||
| Umugqa ongenayo | Emuva okungenayo (uhlobo lwe-rack), okungenayo okungenayo (okufakwe odongeni) | Emuva umugqa ongenayo | ||||
| Ileveli yokuvikela | I-IP20 | |||||
Model & Procation:
| Amamodeli | ||||
|---|---|---|---|---|

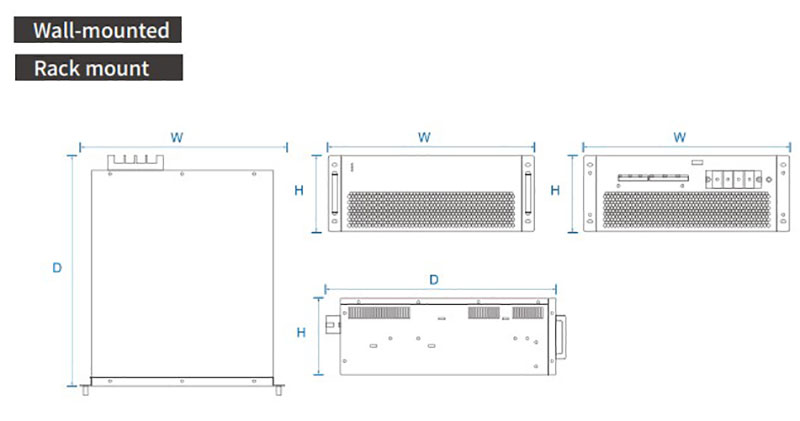

| Inombolo yemodeli | Umthamo wesinxephezelo (kvar) | I-System Voltage (V) | Ubukhulu (D * w * h) | Indlela yokupholisa |
| Gy asvg-0.22-5k / 2L-R / W | 5 | 220 | 220 * 330 * 160mm | Ukuphoqelelwa komoya komoya |
| Gy asvg-0.4-15k / 4L-R / W | 15 | 380 ± 20% | 460 * 520 * 89mm | |
| Gy asvg-0.4-35k / 4L-R / W | 35 | 380 ± 20% | 460 * 520 * 89mm | |
| Gy asvg-0.4-50k / 4L-R / W | 50 | 380 ± 20% | 500 * 540 * 190mm | |
| Gy asvg-0.4-75k / 4L-R / W | 75 | 380 ± 20% | 500 * 580 * 240mm | |
| Gy asvg-0.4-100k / 4L-R / W | 100 | 380 ± 20% | 500 * 580 * 240mm | |
| Gy asvg-0.5-90k / 4L-R / W | 90 | 500 ± 20% | 495 * 675 * 275mm | |
| Gy asvg-0.69-120k / 4L-R / W | 120 | I-690 ± 20% | 495 * 675 * 275mm | |
