IKhabhinethi-Thayipha i-Static Var generator
Kwethulwa i-generator ye-static yekhabethe yeKhabhinethi yekhabethe isixazululo esifanelekile sokuthola kwakho amabhasi!. Ukulungiswa okunamandla, <10ms impendulo, design modular. Ilungele imboni esindayo, uwoyela negesi, izimayini, namandla avuselelekayo.
Ama-generator we-turage e-turators weKhabhinethi athuthukisiwe anikela ngesinxephezelo samandla avuselelwa amandla aphezulu ezicelo zezimboni. Lezi zinhlelo, ezigcinwe kumakhabethe amakhulu, zinikeza ukulungiswa okunamandla nokunembile kokushintshashintsha kwezici zamandla, ngcono ukuqina kohlelo kanye nokusebenza kahle. Isebenzisa ukulawula okuthuthukile kwe-DSP + CPLD ubuchwepheshe be-topology ezintathu, baletha izikhathi zokuphendula ngokushesha (<10ms) ezifunweni zomthwalo ezihlukile. Idizayini esezingeni elifanele inika amandla ukunwetshwa kwamandla aguqukayo ngokuxhumeka okuhambisanayo kwamayunithi amaningi. Izici ezibalulekile zifaka ukuphola okuphoqelekile komoya, izici ezibanzi zokuvikela (izici eziphezulu, ezingaphansi, ukweqisa, njll.), Kanye namakhono okubheka kude. Kutholakala ezilinganisweni ezahlukahlukene ze-kvar namazinga we-voltage ukuze avumelane nezinhlelo ezihlukile zamandla ezimboni.
Incazelo Model:
| Uhlobo lwemoto | A no-asvg | 0.4 | 50k | / | 4L | C |
| Ikhodi yebhizinisi | I-Static Var generator | Ileveli ye-Voltage I-0.22: 220V 0.4: 380v ± 20% I-0.5: 500V ± 20% 0.69: 690v ± 20% |
Inani elilinganiselwe (kvar) 5/10/35/15 / 75 / 100kvar | 2l: Isigaba esisodwa I-3L: Isigaba esithathu-sigaba ezintathu I-4L: Isigaba Esithathu-Izintambo ezine |
C: i-shisint |
Izici:
● Sebenzisa i-DSP + CPLD Yonke i-Digital Control Core, ubuchwepheshe be-topology ezintathu, isu eliphakeme lokuthola amandla i-algorithm ne-PWM yokulawula i-PWM ukufezekisa isinxephezelo esinamandla nesinembile samandla asebenzayo.
● Yamukela ukwakheka okulungiselelwe, okusiza ukuxhumana okuhambisanayo kwamamojula amaningi, kuthatha isikhala esincane futhi kulula ukukugcina.
● Idizayini yokwakheka kwe-Independent Air Ducts kanye nama-WETE WAREHOSEes aqinisekisa ukusebenza okuzinzile kwemishini.
● Yenza isinxephezelo esiguquguqukayo esigcwele samandla asebenzayo asebenzayo namandla okusebenza kabusha we-capacive, futhi axazulule inkinga engalingani emithathu ngasikhathi sinye.
● Ijubane lokuphendula elinamandla kulo mthwalo lisezingeni lama-millisecond, elingafinyelela isinxephezelo esinamandla nesinembile samandla asebenzayo wemithwalo yomthelela.
Izicelo:
IKhabhinethi-Thayipha Advanced Advanced Grat Generator Thola uhlelo lokusebenza ezimbonini ezidinga amandla aphezulu, isinxephezelo samandla esitelekeli esisebenzayo. Ukusetshenziswa okujwayelekile kufaka phakathi:
● Imboni Eyisindayo:Izinsimbi zensimbi, izitshalo zikasimende, nezinye izinqubo ezisindayo zezimboni zizuza ngekhwalithi ephezulu yamandla kanye nokuncishiswa kwamandla.
● Amafutha negesi:Ukugcina amandla aqinile ekufuneni ukukhishwa kwamafutha nokukhishwa kwegesi kanye nezindawo ezisebenzayo.
● Ukusebenza Kwezimayini:Ukuqinisekisa ukulethwa kwamandla okuthembela ekusebenzeni kwezimayini, ngisho nemithwalo eshintshashintshayo.
● Ukuhlanganiswa kwamandla okuvuselelekayo:Ukushintshashintsha kwamandla okubushelelezi kusuka emithonjeni yamandla evuselelekayo efana namandla elanga namandla omoya.
● Izinhlelo zamandla ezisetshenziswayo:Ukuthuthukisa ukuqina kwegridi kanye nekhwalithi yamandla kumanethiwekhi amakhulu okusatshalaliswa kwamandla.
Ama-generator we-turators weKhabhinethi athuthukisiwe anikezela ngesisombululo esinamandla nesisebenzayo sokwenza kahle izinhlelo zamandla ekufuneni izindawo ezifunwa kwezimboni.
Amapharamitha Ezobuchwepheshe:
| I-220V Series | I-380V Series | I-500V Series | I-690V Series | |||
| Ukuphakama phezu kolwandle | <2000m, ngenhla kuka-2000m, okukhiqizayo ngokusho kwe-GB / T3859.2 | |||||
| Izinga lokushisa elikhona | -20 ~ + 50 ℃ | |||||
| Umswakama ohlobene | ≤90%, Akukho ukubuyiselwa emuva ebusweni lapho izinga lokushisa eliphansi lanyanga zonke lingu-25 ℃ | |||||
| Izinga lokungcola | I-Level III ngezansi | |||||
| Voltage osebenzayo | I-AC220V ± 20% | AC380V ± 20% | AC500V ± 20% | I-AC690V ± 20% | ||
| Imvamisa yokusebenza | I-50hz ± 5% | |||||
| Kulinganiselwe Isinxephezelo Senkokhelo | I-5kvar | 15 / 35/15 / 75 / 100kvar | I-90kvar | I-120kvar | ||
| Isakhiwo segridi | L / n | I-3P3w / 3P4W | ||||
| Inani lamayunithi axhumeke ngokufana | -Nethemba | |||||
| Ukusebenza kahle komshini okuphelele | ≥97% | |||||
| Imvamisa ekwi-off | 32Khz | I-16KHZ | 12.8kHz | 12.8kHz | ||
| Ukukhetha umsebenzi | Amandla asebenzayo | I-Reactive PO Wer, Reactive PO Wer + Mibalance | ||||
| Izinga Lokulungiswa Kwamandla Amandla | ≥99% | > 95% | ||||
| Isikhathi sokuphendula esigcwele | <10ms | |||||
| Isixokoxoko | ≤60db | ≤60db | ≤65DB | ≤65DB | ||
| Indlela yokulawula | 2-Way Rs485 isikhombimsebenzisi (isekela i-GPRS / WIFI) | |||||
| Ukuvikela | Ukulayisha ngokweqile, isoftware / ye-Hardware ephezulu kakhulu, i-grid screvoltage kanye nokuvinjwa kwamandla, ukwehluleka kwamandla, ukuvikelwa okuphezulu, ukuvikela imvamisa, njll. | Ukulayisha ngokweqile, isoftware / i-Overculvent Overcursent, i-Grid Overvoltage kanye ne-Undervoltage, I-Grid Voltage Imbalince, Amandla Amandla, Ukuhlukumezeka Kwamandla, Ukuvama imvamisa, Ukuvikelwa Kwesilinganiso, njll. | ||||
| Indlela yokufaka | Rack / kufakwe odongeni | Isikali | ||||
| Umugqa ongenayo | Emuva okungenayo (uhlobo lwe-rack), okungenayo okungenayo (okufakwe odongeni) | Emuva umugqa ongenayo | ||||
| Ileveli yokuvikela | I-IP20 | |||||
Model & Procation:

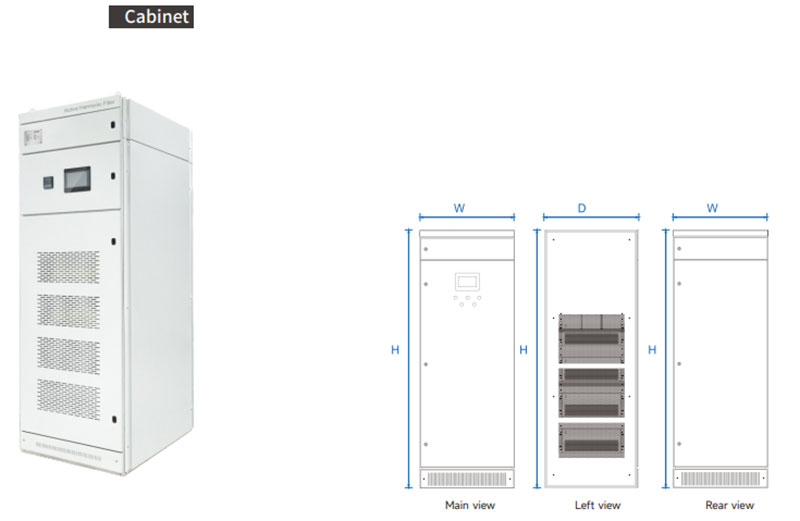

| Imodeli yedivayisi yeKhabhinethi | ||||
|---|---|---|---|---|
| Inombolo yemodeli | Umthamo wesinxephezelo (kvar) | I-System Voltage (V) | Ubukhulu (D * w * h) | Indlela yokupholisa |
| Gy asvg-0.4-200k / 4L-C | 200 | 380 ± 20% | I-800 * 1000 * 2200mm | Ukuphoqelelwa komoya komoya |
| Gy asvg-0.4-250k / 4L-C | 250 | 380 ± 20% | I-800 * 1000 * 2200mm | |
| Gy asvg-0.4-300k / 4L-C | 300 | 380 ± 20% | I-800 * 1000 * 2200mm | |
| Gy asvg-0.4-400k / 4L-C | 400 | 380 ± 20% | I-800 * 1000 * 2200mm | |
| Gy asvg-0.5-270k / 4L-C | 270 | 500 ± 20% | I-800 * 1000 * 2200mm | |
| Gy asvg-0.69-360k / 4L-C | 360 | I-690 ± 20% | I-800 * 1000 * 2200mm | |
