Isihlungi se-Three-Wire Rack Mount esebenzayo Harmonic Filter
Thola inani elikhulu kwi-Three-Wire Rack Mount Mount Ork Harmonic Filter, yakhelwe ukusebenza okuphezulu nokusebenza kwamandla. UGeya unikeza isixazululo esisebenziseka kabi saseChina sokwenza ngcono ikhwalithi yamandla, elungele izinhlelo ezahlukahlukene. Xhumana nathi ukuthola eminye imininingwane futhi uvikele isivumelwano esihle kakhulu!
I-Three-Wire Rack Mount Mount Mound Active Harmonic Filter (AHF) okunikezwayo Ukuncishiswa okuthuthukile kwe-harmonic ngezinhlelo zamandla ezigaba ezintathu. Ukusebenzisa a I-DSP + CPLD Digital Control Control Colour Core kanye ne-Allorithms eyindida, lokhu I-rack-yafakwa ahf nge-harlises armonises armonises aze afike kwa-50 Oda. I-Modular Design iqinisekisa ukuqina kanye nokulungiswa. -Tholakala Ezilinganisweni ezahlukahlukene zamanje (25A kuya ku-150a) namazinga we-voltage (220V kuya ku-690v), I-AHF ihlinzeka ngezinketho zokucushwa eziguqukayo. Ukuphoqelelwa komoya komoya uqinisekisa ukusebenza okuthembekile. Le ntaba yesigaba ezintathu-wire rack Mount iyasebenza Ukuhlunga kwe-harmonic kuthuthukisa ikhwalithi yamandla nokwenza uhlelo.
Incazelo Model:
| Uhlobo lwemoto | Ahf | 0.4 | 50A | / | 3L | R |
| Ikhodi yebhizinisi | Isihlungi esisebenzayo se-harmonic | Ileveli ye-Voltage I-0.22: 220V 0.4: 380v ± 20% I-0.5: 500V ± 20% 0.69: 690v ± 20% |
Umthamo olinganiselwe (kvar) 25/50/75 / 100 / 150a | I-3L: Isigaba esithathu-sigaba ezintathu | R: I-Rack Mount |
Izici:
● Sebenzisa i-DSP + CPLD yonke i-Digital Control Core, ubuchwepheshe be-topology ezintathu,
Isu le-Advanced Advanced AND HARMORIC ne-PWM control Strategy ukufeza
isinxephezelo esinembile se-harmonic yamanje.
● Yamukela umklamo ojwayelekile, osiza ukuxhumana okufanayo kokuningi
Amamojula, athatha isikhala esincane futhi kulula ukuwagcina.
● Idizayini yokwakheka kwezindawo ezimele zomoya kanye nezindawo zokugcina ezizimele
Iqinisekisa ukusebenza okuzinzile kwemishini.
● Ingahlunga i-harmonics kunhlobonhlobo ye-harmonics, kusuka ku-2 kuye ku-50
I-Harmonics, futhi ixazulule inkinga yokungalingani kwesigaba ezintathu ngasikhathi sinye.
● Izinga lokuhlunga le-harmonic liphezulu. Uma umthamo uvumela, i-harmonic
Izinga lokuhlunga kwamanje lingaba phezulu njengo-95%. Setha umkhawulo wamanje we-100%
okuphumayo ukuqinisekisa ukusebenza kwesikhathi eside kwemishini.
Izicelo:
Izihlungi ezintathu ze-Three-Wire Rack Mount ezisebenzayo zibalulekile Ukuqinisekisa amandla ahlanzekile emikhakheni ehlukahlukene:
● I-automation yezimboni:Ukuthuthukisa ukusebenza futhi
I-Lifespan yemishini yesigaba ezintathu ngokunciphisa ukuhlanekekezela kwe-harmonic.
● Izinhlelo Zamandla Ezivuselelekayo:Ukuhlanganisa Amandla Avuselelekayo
Imithombo ngaphandle komthungo kugridi ngokunciphisa imisinga ye-harmonic.
● Umkhakha wamafutha negesi:Ukuhlinzeka amandla aqinile okubucayi
Ukusebenza ezindaweni ezinokhahlo, ukuthuthukisa ukusebenza kahle nokuphepha.
● Izitshalo zokukhiqiza:Ukunciphisa ukuphazamiseka kwe-harmonic ngaphakathi
Izinqubo zokukhiqiza eziyinkimbinkimbi, ziqinisekisa ikhwalithi yomkhiqizo engaguquki.
Izimpawu ezintathu ze-Three-Wire Rack Mount actim Harmonic izihlungi ezinikezwayo futhi Izisombululo eziguqukayo eziguqukayo zokunciphisa izigaba ezifunwayo ezintathu Izicelo.
Amapharamitha Ezobuchwepheshe:
| I-220V Series | I-380V Series | I-500V Series | I-690V Series | ||
| Ukuphakama phezu kolwandle | <2000m, ngenhla kuka-2000m, okukhiqizayo ngokusho kwe-GB / T3859.2 | ||||
| Izinga lokushisa elikhona | -20 ~ + 50 ℃ | ||||
| Umswakama ohlobene | ≤90%, akukho ukubuyiselwa emuva ebusweni lapho njalo ngenyanga izinga lokushisa eliphansi lingu-25 ℃ | ||||
| Izinga lokungcola | I-Level III ngezansi | ||||
| Voltage osebenzayo | I-AC220V ± 20% | AC380V ± 20% | AC500V ± 20% | I-AC690V ± 20% | |
| Imvamisa yokusebenza | I-50hz ± 5% | ||||
| Isinxephezelo samanje | 25A | 25/50/75/100 / 150a | 100A | 100A | |
| Isakhiwo segridi | L / n | I-3P3w / 3P4W | I-3P3w / 3P4W | I-3P3w / 3P4W | |
| Inani lamayunithi exhunywe ngokufana |
-Nethemba | ||||
| Ukusebenza kahle komshini okuphelele | ≥97% | ||||
| Isakhiwo segridi | 32Khz | I-16KHZ | 12.8kHz | 12.8kHz | |
| Uhla lwenxephezelo | 2 ~ 50times, isilinganiso esisodwa sokunxeshezelwa siyakwazi ukuguquguquka | ||||
| Ukukhetha umsebenzi | Amandla asebenzayo | Amandla asebenzayo, amandla asebenzayo + asymmetry | |||
| Amandla asebenzayo Izinga Lokunxephezelo |
≥95% | > 92% | |||
| Ukuhlunga okungathathi hlangothi ikhono |
Amandla wokuhlunga angathathi hlangothi ahlabelelayo izikhathi ezi-3 ezingesigaba amandla okuhlunga | ||||
| Isikhathi sokuphendula esigcwele | <10ms | <40ms | <40ms | <40ms | |
| Isixokoxoko | ≤60db | ≤60db | ≤65DB | ≤65DB | |
| Indlela yokulawula | 2-Way Rs485 isikhombimsebenzisi (isekela i-GPRS / WIFI) | ||||
| Ukuvikela | Ukulayisha ngokweqile, isoftware / ye-Hardware Overcurent, Grid Overvoltage kanye nokwenziwa ngaphansi kwamandla, ukwehluleka kwamandla, ukuvezwa kwabantu, imvamisa Ukuvikelwa okungajwayelekile, njll. | Ukulayisha ngokweqile, isoftware / ye-Hardware Overcurent, Grid Overvoltage kanye nokungaphansi kokuvinjwa kwe-voltage ukungalingani, ukwehluleka kwamandla, I-Oversemperature, imvamisa ukuhlukunyezwa, umjikelezo omfushane Ukuvikelwa, njll. | |||
| Indlela yokufaka | Rack / kufakwe odongeni | Isikali | |||
| Umugqa ongenayo | Emuva okungenayo (uhlobo lwe-rack), okungenayo okungenayo (okufakwe odongeni) | Emuva umugqa ongenayo | |||
| Ileveli yokuvikela | I-IP20 | ||||
Model & Procation:
| Amamodeli | ||||
|---|---|---|---|---|

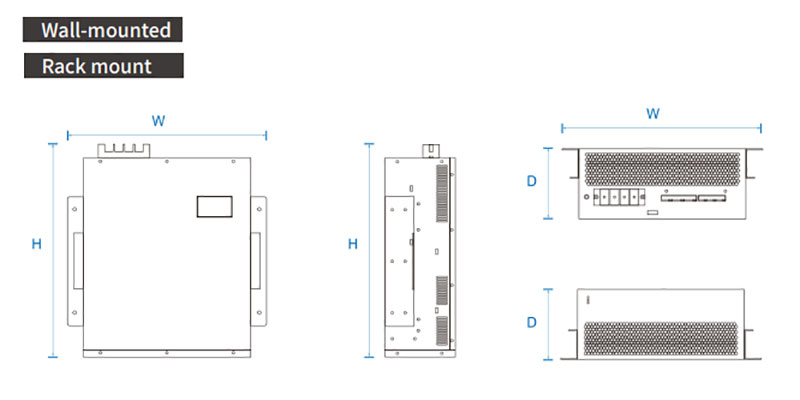

| Inombolo yemodeli | Kukalwe manje (a) | I-System Voltage (V) | Ubukhulu (D * w * h) | Indlela yokupholisa |
| Gy apf-0.22-25a / 2L-R / W | 25 | 220 | 220 * 330 * 160mm | Ukuphoqelelwa komoya komoya |
| Gy apf-0.4-25a / 4L-R / W | 25 | 380 ± 20% | 460 * 490 * 89mm | |
| Gy apf-0.4-50A / 4L-R / W | 50 | 380 ± 20% | 460 * 490 * 89mm | |
| Gy apf-0.4-75a / 4L-R / W | 75 | 380 ± 20% | 500 * 510 * 190mm | |
| Gy apf-0.4-100a / 4L-R / w | 100 | 380 ± 20% | 500 * 550 * 240mm | |
| Gy apf-0.4-150a / 4L-R / W | 150 | 380 ± 20% | 500 * 550 * 240mm | |
| Gy apf-0.5-100a / 4L-R / w | 100 | 500 ± 20% | 495 * 675 * 275mm | |
| Gy apf-0.69-100a / 4L-R / w | 100 | I-690 ± 20% | 495 * 675 * 275mm | |
