I-500V yeKhabhinethi-Thayipha I-Active Harmonic Filter
I-500V yeKhabhinethi-Thayipha i-Active Harmonic Filter ngentengo eshibhile mitigates Harmonics ku-500V 3-Phase (3/4-Wire). Izici Isilawuli sedijithali, design modular & inxephezelo kuze kufike ku-50th Harmonic, ukulungisa ukungalingani. Ilungele ukusatshalaliswa kwamandla aphakathi nendawo, imboni esindayo, nezinhlelo zamandla avuselelekayo. Finyelela okwesikhashana isilinganiso esivumelana nezinhloso zakho zebhizinisi!

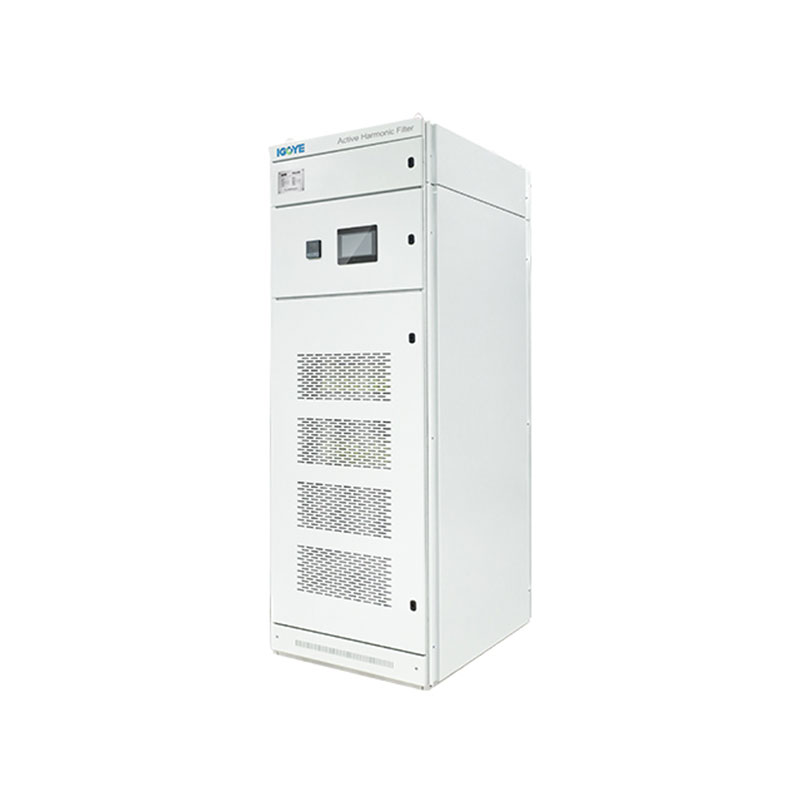

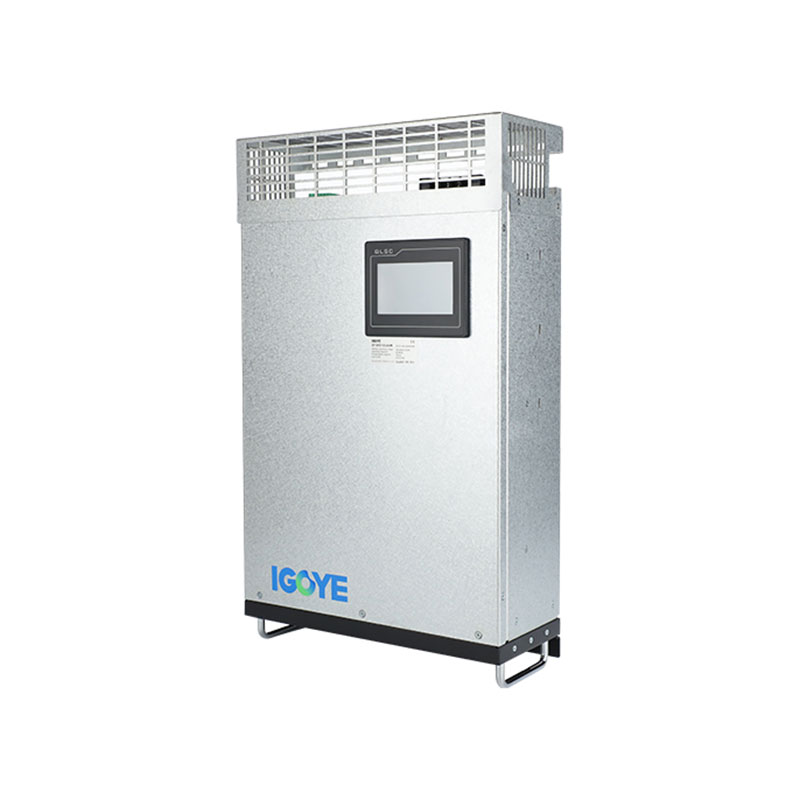

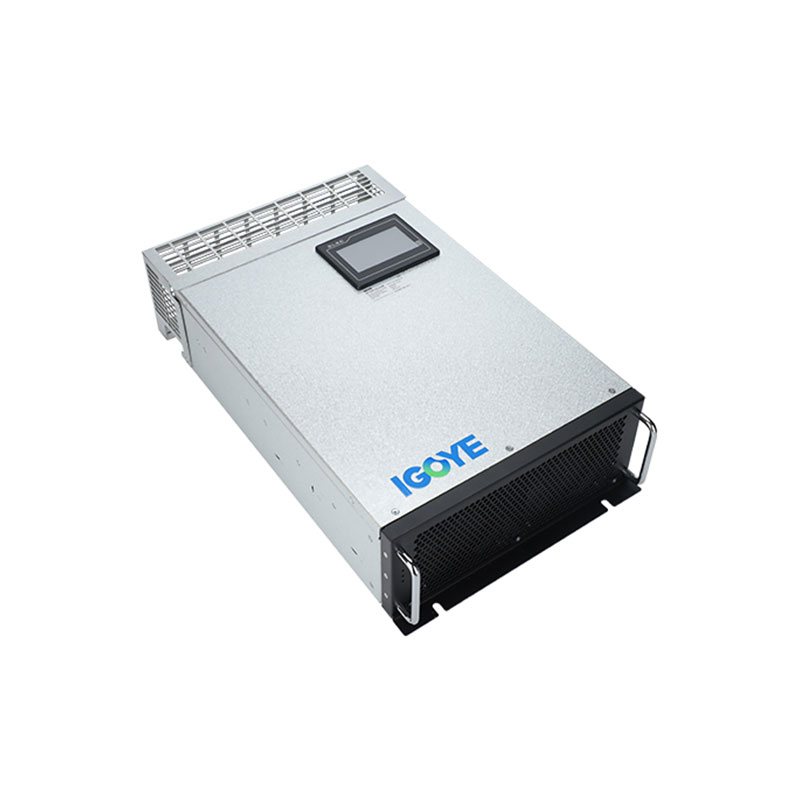

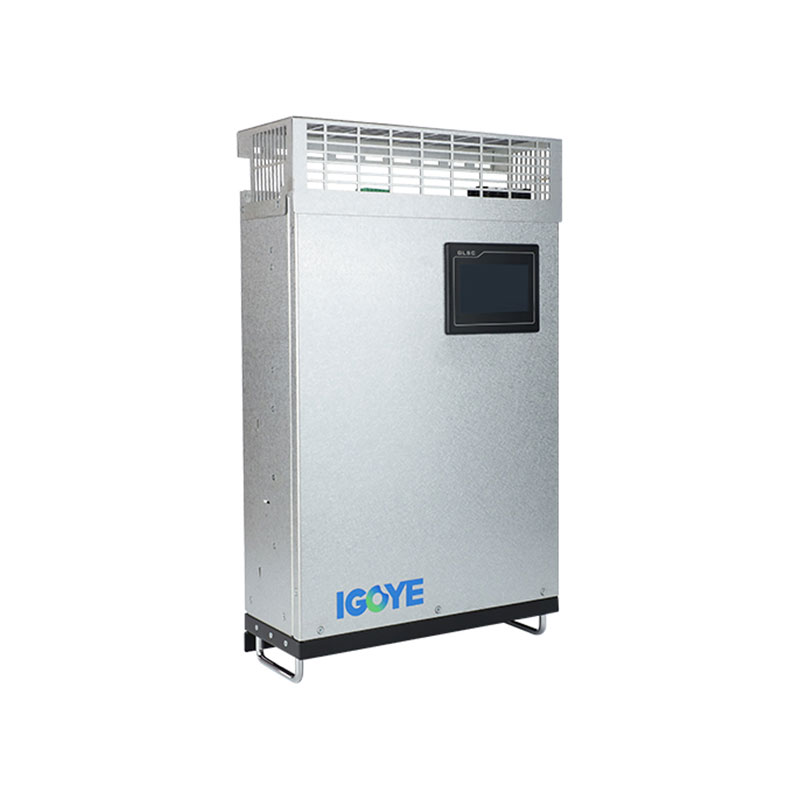

Isihlungi se-500V seKhabhinethi-Thayipha Active Harmonic (APF) siveza ikhambi elisebenza kahle kakhulu lokunciphisa amandla nge-500V amathathu anezithelo ezintathu nezinhlelo ezine. Ukusebenzisa ukulawula okuthuthukile kwe-DSP + CPLD kanye ne-topology enezinga ezintathu, le apf ifinyelela isinxephezelo samanje se-harmonic kuze kube yi-50th Harmonic, ngenkathi futhi ikhuluma nokungalingani kwesigaba ezintathu. Idizayini yayo eshukumisayo inika amandla umthamo ohlanganayo ngokuxhumana okuhambisanayo kwamayunithi amaningi. Kufakwe ngaphakathi kwekhabethe eliqinile elinama-ducts ezi-air ezimele, i-500V Training-Type Active Harmonic Harmonic iqinisekisa ukusebenza okuthembekile nokunakekelwa okulula. Le apf, enezilinganiso ezikhona zamanje ezifinyelela kuma-capacities angama-400a nama-kvar kuze kube ngu-400, ihambisa ukuthuthukiswa kwamakhwalithi aphelele wamandla wezinhlelo ezingama-500V.
Incazelo Model:
| Uhlobo lwemoto | Ahf | 0.5 | 100A | / | 4L | C |
| Ikhodi yebhizinisi | Isihlungi esisebenzayo se-harmonic | Ileveli ye-Voltage I-0.5: 500V ± 20% |
Umthamo olinganiselwe (kvar) 100a | I-3L: Isigaba esithathu-sigaba ezintathu I-4L: Isigaba Esithathu-Izintambo ezine |
C: IKhabhinethi |
Izici:
● Sebenzisa i-DSP + CPLD Yonke i-Digital Control Core, ubuchwepheshe be-topology ezintathu, isu lokutholwa kwe-allorithm ne-PWM lokulawula i-PWM ukufezekisa isinxephezelo esinembile samanje se-harmonic yamanje.

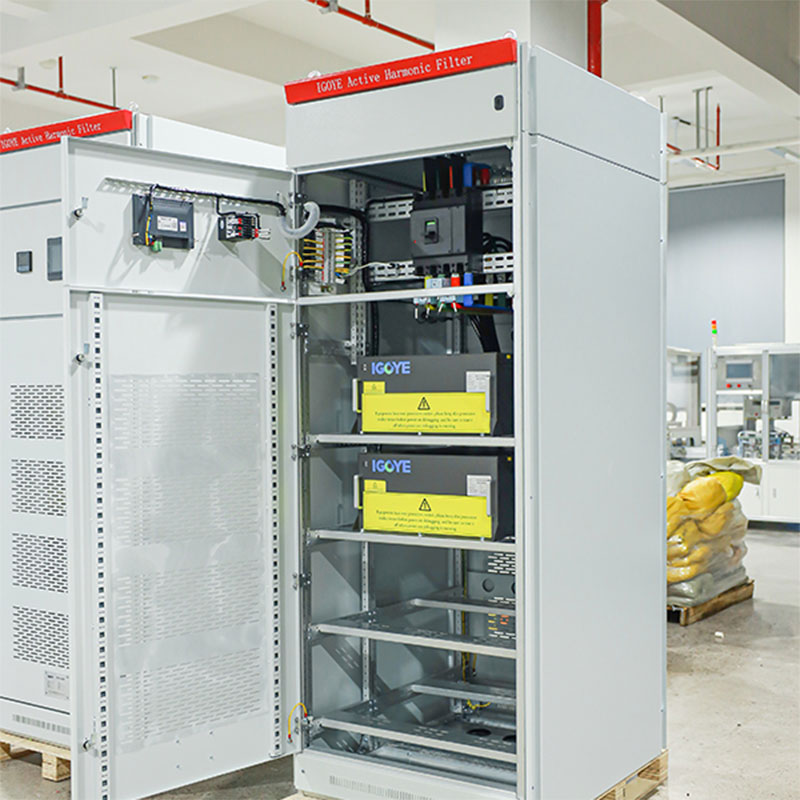

● Yamukela ukwakheka okulungiselelwe, okusiza ukuxhumana okufanayo kwamamojula amaningi, kuthatha isikhala esincane futhi kulula ukuwugcina.

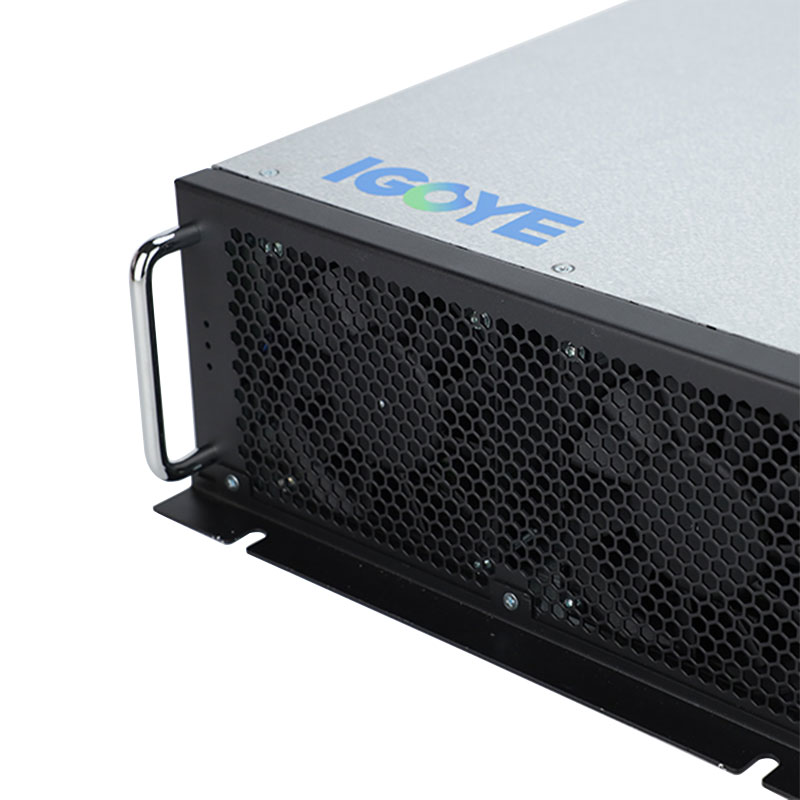

● Idizayini yokwakheka kwe-Independent Air Ducts kanye nama-WETE WAREHOSEes aqinisekisa ukusebenza okuzinzile kwemishini.
● Ingahlunga i-harmonics kunhlobonhlobo ye-harmonics, kusuka ku-2 kuye ku-50 Harmonics, futhi ixazulule inkinga yokungalingani kwesigaba ezintathu ngasikhathi sinye.
● Izinga lokuhlunga le-harmonic liphezulu. Uma umthamo uvumela, isilinganiso sokuhlunga samanje se-harmonic singaba phezulu njengo-95%. Setha okungu-100% okukhawulelwe kokukhawulelwa kwamanje ukuqinisekisa ukusebenza kwesikhathi eside kwemishini.
Izicelo:
Izihlungi ze-500V zeKhabhinethi-Thayipha zenzelwa ukuthuthukiswa kwekhwalithi yamandla kuzicelo zezimboni eziphakathi nendawo:
● Ukusatshalaliswa kwamandla aphakathi nendawo:Ukuqina kwamandla okusatshalaliswa kwamandla ngokunciphisa ukuhlanekezela nge-harmoni kanye nokwenza ngcono ukusebenza kahle kohlelo.
● Izinqubo Ezisindayo Zezimboni:Ukuqinisekisa ukusebenza okuthembekile kwemishini ebucayi ezimbonini ezinokuqukethwe okuphezulu kwe-hamonic, njengezimayini kanye namafutha negesi.
● Ama-Systems avuselelekayo avuselelekayo (i-mevy voltage):Ukuthuthukisa ikhwalithi yamandla endaweni yokuxhumeka ye-Medium-Voltage Energy Energy.
● Izicelo zasemanzini nezinto eziphuma olwandle:Ukuhlinzeka ngekhwalithi ethembekile yamandla ezindaweni ezinokhahlo lapho izinhlelo ezingama-500V zivamile.
I-500V yeKhabhinethi-Thayipha I-Active Harmonic izihlungi zinikeza isixazululo esiqinile nesiguqukayo sokwenza kahle ikhwalithi yamandla ekufuneni izinhlelo zokusebenza ezingama-500V.
Amapharamitha Ezobuchwepheshe:
| I-220V Series | I-380V Series | I-500V Series | I-690V Series | ||
| Ukuphakama phezu kolwandle | <2000m, ngenhla kuka-2000m, okukhiqizayo ngokusho kwe-GB / T3859.2 | ||||
| Izinga lokushisa elikhona | -20 ~ + 50 ℃ | ||||
| Umswakama ohlobene | ≤90%, Akukho ukubuyiselwa emuva ebusweni lapho izinga lokushisa eliphansi lanyanga zonke lingu-25 ℃ | ||||
| Izinga lokungcola | I-Level III ngezansi | ||||
| Voltage osebenzayo | I-AC220V ± 20% | AC380V ± 20% | AC500V ± 20% | I-AC690V ± 20% | |
| Imvamisa yokusebenza | I-50hz ± 5% | ||||
| Isinxephezelo samanje | 25A | 25/50/75/100 / 150a | 100A | 100A | |
| Isakhiwo segridi | L / n | I-3P3w / 3P4W | I-3P3w / 3P4W | I-3P3w / 3P4W | |
| Inani lamayunithi exhunywe ngokufana |
-Nethemba | ||||
| Ukusebenza kahle komshini okuphelele | ≥97% | ||||
| Isakhiwo segridi | 32Khz | I-16KHZ | 12.8khz | 12.8khz | |
| Uhla lwenxephezelo | 2 ~ 50times, isilinganiso esisodwa sokunxeshezelwa siyakwazi ukuguquguquka | ||||
| Ukukhetha umsebenzi | Amandla asebenzayo | Amandla asebenzayo, amandla asebenzayo + asymmetry | |||
| Amandla asebenzayo Izinga Lokunxephezelo |
≥95% | > 92% | |||
| Ukuhlunga okungathathi hlangothi ikhono |
Amandla wokuhlunga angathathi hlangothi ahlabelelayo izikhathi ezi-3 zendlela yokuhlunga kwesigaba | ||||
| Isikhathi sokuphendula esigcwele | <10ms | <40ms | <40ms | <40ms | |
| Isixokoxoko | ≤60db | ≤60db | ≤65DB | ≤65DB | |
| Indlela yokulawula | 2-Way Rs485 isikhombimsebenzisi (isekela i-GPRS / WIFI) | ||||
| Ukuvikela | Ukulayisha ngokweqile, isoftware / ye-Hardware ephezulu kakhulu, i-grid screvoltage kanye nokuvinjwa kwamandla, ukwehluleka kwamandla, ukuvikelwa okuphezulu, ukuvikela imvamisa, njll. | Ukulayisha ngokweqile, isoftware / ye-Hardware Overcursent, i-Grid Overvoltage kanye ne-Undervoltage, I-Grid Voltage Mibance, Amandla Amandla, Ukuhlupheka Okuphezulu, Ukuvikelwa Kwemvamisa, Ukuvikelwa Kwemvamisa, Ukuvikelwa Okufushane, njll. | |||
| Indlela yokufaka | Rack / kufakwe odongeni | Isikali | |||
| Umugqa ongenayo | Emuva okungenayo (uhlobo lwe-rack), okungenayo okungenayo (okufakwe odongeni) | Emuva umugqa ongenayo | |||
| Ileveli yokuvikela | I-IP20 | ||||
Model & Procation:
| Imodeli yedivayisi yeKhabhinethi | ||||
|---|---|---|---|---|
| Inombolo yemodeli | Umthamo wesinxephezelo (kvar) | I-System Voltage (V) | Ubukhulu (D * w * h) | Indlela yokupholisa |
| Gy apf-0.4-100a / 4L-C | 100 | 380 ± 20% | I-800 * 1000 * 2200mm | Ukuphoqelelwa komoya komoya |
| Gy apf-0.4-150a / 4L-C | 150 | 380 ± 20% | I-800 * 1000 * 2200mm | |
| Gy apf-0.4-200a / 4L-C | 200 | 380 ± 20% | I-800 * 1000 * 2200mm | |
| Gy apf-0.4-250A / 4L-C | 250 | 380 ± 20% | I-800 * 1000 * 2200mm | |
| Gy apf-0.4-300a / 4L-C | 300 | 380 ± 20% | I-800 * 1000 * 2200mm | |
| Gy apf-0.4-400A / 4L-C | 400 | 380 ± 20% | I-800 * 1000 * 2200mm | |
| Gy apf-0.5-300a / 4L-C | 300 | 500 ± 20% | I-800 * 1000 * 2200mm | |
| Gy apf-0.69-300a / 4L-C | 300 | I-690 ± 20% | I-800 * 1000 * 2200mm | |
